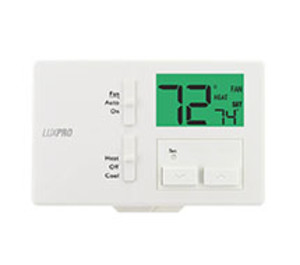

P111 | Johnson Controls | Thermostats & Controllers

Dimensions: 5.375" (136mm) wide x 3.375" (86mm) tall x 1.25" (33mm) deep

Heat/Cool Terminals: RH, RC, W, Y, G, C, O/B (solid pin for 24v and Millivolt systems)

Electrical Ratings: 1.5 Amps per terminal at 24 volts

Temperature Control Range: Temp control 45°F to 90°F (7°C to 32°C); Display range 23°F to 99°F (-5°C to 37°C); Temperature differential adjustable from 0.25°F to 2.25°F; Accuracy ±1°F over a range of 45°F to 95°F

Environmental Limits: Moisture and Dust meets IP20; Operating Humidity 20% to 90% non-condensating; Operating temperature 14°F to 112°F (-10°C to 40°C); Storage temperature -4°F to 140°F (-20°C to 60°C); Electrical Immunity meets relevant EMI/EMC specifications

Compatible With: For most 24V heating and A/C systems;1-heat/1-cool gas, oil, electric or single-stage heat pump systems;2-wire hydronic systems (hot water baseboard & radiator); Gas Millivolt heaters (wall heaters/furnaces & gas fireplaces)

Not Compatible With: Multi-stage heating & AC systems; multi-stage heat pumps;3-wire hydronic zone valve systems; Line voltage systems (120/240 VAC)

Packaging: Master Carton 10 units; UPC 0 21079 14711 1

Warranty: 5 years
