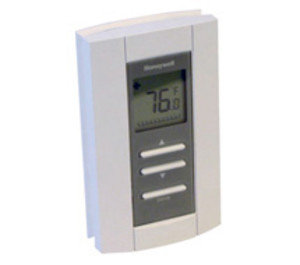

TB7980B1005 | Honeywell | Thermostats & Controllers

0-10 VDC, MODULATING, ZONE T-STAT

Brand:Honeywell

MPN:TB7980B1005

SKU:TB7980B1005

List Price:

$781.00

Today's Price:

$406.12



Availability: 43 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

24 VAC

Type

Non-Programmable

Set Point Range

50 to 95 °F

Display

LCD

Controls Outputs

Proportional

product series specifications

    Supply Voltage:
  • 24 VAC @ 0.6 VA
    Control:
  • Proportional + integral (PI)
    Display:
  • 1‚Äù x 1'' LCD with 0.5'' high temperature digits
    Readout Backlighting:
  • 32° to 140°F (0° to 60°C) with 1°F (0.5°C) resolution 12-second dwell, button-activated
    Outputs:
  • Triac, 24 VAC, 0-10 VDC, or 2-10 VDC
    :
  • TB6980A #1 Floating control, heating (reverse acting) or cooling (direct acting)
    :
  • TB6980B #1 Floating control, heating (reverse acting) or cooling (direct acting)
    :
  • #2 0 or 2-10 VDC or on/off, heating (reverse acting)
    :
  • #3 On/off, following output 1
    :
  • TB7980A #1 0 or 2-10 VDC heating (reverse acting) or cooling (direct acting)
    :
  • TB7980B #1 0 or 2-10 VDC heating (reverse acting) or cooling (direct acting)
    :
  • #2 0 or 2-10 VDC or on/off, heating (reverse acting)
    :
  • #3 On/off, following output 1
    Inputs:
  • Night setback, open = occupied
    :
  • Changeover, digital input or sensor
    :
  • Remote sensor, 500141xx-xxx
    Configuration Parameters:
    :
    :
  • Application Room, supply air, changeover
    :
  • Output 1 Cooling or heating
    :
  • Damper Minimum 0-50%
    :
  • Actuator Timing 80-160 seconds (Tx6980 only)
    :
  • Output 2 Heating, floating control, on/off, or proportional
    :
  • Output 3 Minimum on time (1 second, 10 minutes, 15 minutes) or signal percent of output 1
    :
  • Setback Value 2° to 18°F (1° to 9°C), in 2°F (1°C) increments
    :
  • Setpoint Limits Minimum 50° to 94°F (10° to 34°C)
    :
  • Maximum 51° to 95°F (11° to 35°C)
    Internal Switch Settings (Switches 1, 2, and 6 only):
    :
  • SW1 °F or °C
    :
    :
  • SW2 Normal or configuration mode
    :
  • SW6 Output 2 (proportional or triac control)
    Memory Protection:
  • Configuration and setpoint
    Setpoint Buttons:
  • Range 50° to 90°F (10 to 35°C)
    Override Button:
  • 2-hour night setback override (Pushing twice cancels override)
    Operating Temperature:
  • 32° to 140°F (0° to 60°C)
    Operating Humidity:
  • 0-95% RH, non-condensing
    Sensor Changeover:
  • Deadband = 9°F (5°C), or contact
    Wiring:
  • 22 to 18 AWG
    Mounting :
  • Direct or to 2" x 4" box Cover secured with set screw
    Dimensions:
  • 4.6"H x 2.7"W x 1.0"D
    :
  • (11.8 x 6.9 x 2.7 cm)
    Weight:
  • 0.3 lb (0.14 Kg)
    Warranty:
  • 2 years

product series features

  • Floating control output(s) (T6980)
  • Proportional control output(s) (T7980)
  • Digital display (F or C and output bar graph)
  • PI control algorithms
  • Single or dual-output models
  • Vertical mounting
  • Night setback override (2-hour)
  • Remote sensor capable
  • Room or discharge air control
  • Minimum and maximum setpoint limits
  • Minimum damper open %
  • 12-second backlighting
  • Two-year warranty

more information & related documents

Series Description

The Model T6980 Floating-Control Zone Thermostat and the Model T7980 Proportional-Control Zone Thermostat both have PI control algorithms and models with dual outputs available. The digital display can be „‰ or „ƒ, and will also display bar graphs and push buttons for set point and override functions. The microprocessor-based thermostat is DIP switch configurable for application, including night setback value and minimum/maximum set point limits. These thermostats are proven performers in HVAC and building automation applications.
