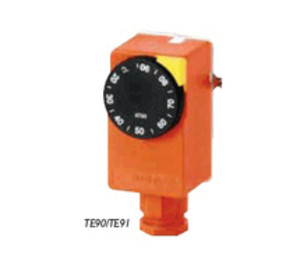

TE91 | Spartan Peripheral Devices | Thermostats & Controllers
TSTAT/MECHANICAL/ STRAPON/68-194DF
Brand:Spartan Peripheral Devices
MPN:TE91
SKU:TE91
List Price:
$201.60
Today's Price:
$104.83
Log in for customized pricingproduct specifications
Stages
Two Stage
System Switching
No
Fan Switching
No
Type
Strap-On
product series specifications
Rated Voltage: 250V
Rated Current: 15 (2,5) A
Switch Contact: 1-pole
Protection type/class: IP 40/1
Test Class: II
Cable Connector: PG II
Switching Difference: 4 K
Setting Range
TE90: 50-140°F (10-60°C)
TE91: 68-194°F (20-90°C)
TE92: 50-194°F (10-90°C)
Max Permitted Sensor Temp.
TE90: 149°F (65°C)
TE91: 248°F (120°C)
TE92: 248°F (120°C)
Max Approved Ambient Temp.
TE90: -4 - 140°F (-20 - 60°C)
TE91: -4 - 140°F (-20 - 60°C)
TE92: -4 - 140°F (-20 - 60°C)
Application
TE90: With metal ribbon on pipes up to 2"
TE91: With metal ribbon on pipes up to 2"
TE92: With immersion pipe R=1/2"
Dimensions: 3.94" x 1.57" x 1.50" (100 x 40 x 38 mm)
Warranty: 5 years
product series features
- Electromechanical thermostats
- Tested according to VDE and DIN 3440
- Metallic fastening ribbon (TE90 and TE91)
- Set temperature adjustable with rotary knob
- Pre-setting
- Precise liquid sensor
- Change-over contact 250 VAC, 15 (2,5) A
- Switching Differential +/- 4 K of rated value
- Protection class IP 40
- TE92 Immersion tube: connection R 1/2in, length 145 mm, dia. 10 mm
more information & related documents
Series Description
The TE90, TE91, TE92 Strap-On and Immersion Thermostat Series can be used for diverse applications such as temperature monitoring for floor heating systems or as a temperature controller for heating or cooling applications, regulation of boilers, buffer tank controls, and switching in applications with different heating sources as automatic heating/cooling changeover. The biggest advantages of these thermostats are their compact design, robust construction, simple installation, and easy adjustability. The thermostats are manufactured with a liquid sensor, which activates an internal spring switch. The fast response and the precision adjustment results in an accurate switching point. When you need the right product, right now, count on Kele.
Kele Description
TSTAT/MECHANICAL/ STRAPON/68-194DF
Manufacturer
Spartan Peripheral Devices
Related Documents
TE90 SERIES DATASHEET
