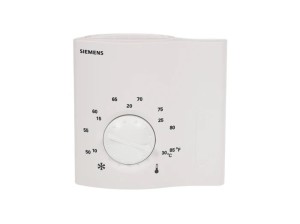

RAA20U | Siemens Industry | Thermostats & Controllers

Operating voltage: 24 to 120 Vac, 277 Vac

Frequency: 50/60 Hz

Setpoint range: 50°F to 85°F (10°C to 30°C)

Setpoint limit stops are adjustable

Switching differential (SD): <1.8°F (1°C), fixed

Switch rating: 6A RES, 3.5A FLA, 12A LRA

Switch action Single-pole, Double-throw

Output: Two-position (on/off)

Weight: 5 oz. (0.14 kg)

Color: Ivory white (housing); Gray (selector knobs)

Ambient conditions

Operation temp.: 32°F to 122°F (0°C to 50°C)

Operation: rh <95%

Transportation temp.: –4°F to 122°F (–20°C to 50°C)

Transportation rh: <95%

Housing Material: Plastic

Enclosure rating: NEMA1

Bellows: Environmentally friendly gas

Wiring: Screw terminals 2 × 16 AWG or 1 × 14 AWG Minimum 20 AWG

Agency certification: Conforms to CE requirements UL listed to 873 (E35918) cUL listed to Canadian standard C22.2 No. 24-93
