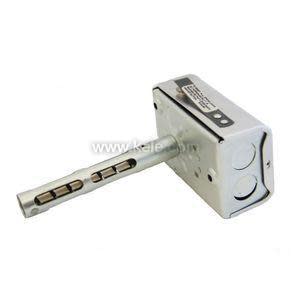

TC-105-1A-3C

TC1051A3C | Senasys | Thermostats & Controllers

Manual Reset Duct High Limit. Adjustable with 5 element. Factory set at 125°F. Temp Range 100° - 250°

Brand:Senasys

MPN:TC1051A3C

SKU:TC-105-1A-3C

List Price:

$152.25

Today's Price:

$79.17



Availability: 1,196 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

120-240 VAC

Type

High Limit

Set Point Range

100 to 250 °F

Display

Mechanical

Stages

Single

System Switching

No

Fan Switching

No

Controls Outputs

SPST

product series specifications

    Contact Rating:
  • 9.8 full load amps @ 115 VAC 4.9 full load amps @ 230 VAC
    Contact Type :
  • SPST N.C. mechanical latching
    Element Length:
  • 5" (12.7 cm) or 11" (27.9 cm)
    Manual Reset Button:
  • External access
    Setpoint Range:
  • 100° to 250°F (38° to 122°C) field adjustable, factory set @125°F (51.6°C)
    Differential:
  • 25°F (13.8°C) fixed
    Weight:
    :
  • TC100 1 lb (0.48 Kg)
    :
  • TC105 0.75 lb (0.36 Kg)
    Approvals:
  • UL File #MH7076
    Warranty:
  • 1 year

product series features

  • Low-cost duct high-temperature limit control
  • Adjustable set point
  • Manual reset
  • UL listed

more information & related documents

Series Description

The Models TC-105 and TC-100 Duct High Temperature Limits feature a helix bimetal element that senses rapid increases in duct temperature, such as those caused by fire. The high temperature limit then operates an SPST switch that opens with a rise in temperature. A manual reset button reactivates the temperature limit after the high-temperature condition has cleared. These duct high temperature limits are indispensable in specialized HVAC applications and Building Automation Systems, BAS.

Kele Description

DUCT HIGH TEMP LIMIT 5IN

Manufacturer

Senasys
