TC-4211 | Schneider Electric Buildings | Thermostats & Controllers

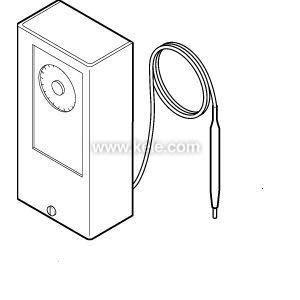

Two-Position, Dual Stage, Single Bulb, -40 to 120F, 6' Capillary
Brand:Schneider Electric Buildings
MPN:TC-4211
SKU:TC-4211
product specifications
Type
Remote Bulb
Stages
Two Stage
System Switching
No
Fan Switching
No
Differential
3F
product series specifications
Supply Voltage: 24-240 VAC
Contacts Rating:
Cooling SPDT: 3.0A @ 24/120V, 1.5A @ 240V
Heating SPDT: 4.4A @ 24/120V, 2.2A @ 240V
Pilot Duty: 40 VA @ 24V, 210 VA @ 120/240V
Control Type: Two-position, on/off
Sensor: Bimetal snap acting
Range Limits: Dial stop pins
Differential: 2°F (1°C)
Connections: 6.0" (15.24 cm) leads, 14 AWG
Mounting: Vertical, 2" x 4" (5.1 x 10.2 cm) switch box
Dimensions: 4.38" H x 2.86" W x 1.63" D (11.13 x 7.26 x 4.14 cm)
Weight: 0.8 lb (0.36 Kg)
Approvals: UL File #E9429
Warranty: 2 years
product series features
- High and low voltage
- Thumbwheel set point
- UL listing
- Plates with set point or blank cover
- Fits standard single-gang switch box
more information & related documents
Series Description
The TC-1100 Series Two-Position Room Thermostats are two-position, single-pole, double-throw room thermostats for HVAC applications and Building Automation Systems, BAS. These room thermostats are designed for single-stage heating or single-stage cooling. The TC-1100 Series thermostat comes in three set point spans to cover most any application: 55 to 85F, 45 to 75F, and 75 to 105F. The TC-1100 Series thermostat comes standard with thermometer and set point as shown. It is also packaged with cover plates for set point only or for blank cover.
Kele Description
2 STAGE/SINGLE T'STAT
Manufacturer
Schneider Electric Buildings
Related Documents
TC-1100 Series Installation Data
