L4006E1067 | Resideo | Thermostats & Controllers
AQUASTAT 110/290F MANUAL RESET
Brand:Resideo
MPN:L4006E1067
SKU:L4006E1067
List Price:
$832.00
Today's Price:
$432.64
Availability: 4 In Stock
product specifications
Type
AquaStat
Stages
Single
System Switching
No
Fan Switching
No
product series specifications
- Sensing Element:
- 20' (6m) element, 1/8" dia., no bulb, controller operates at coldest point
- Switch action:
- :
- :
- L480B SPDT, automatic reset, makes R-B, breaks R-W on temperature fall
- :
- L480G SPST, manual reset, breaks circuit on temperature fall
- :
- L482A 2 SPST, manual reset, main switch (M2) opens, aux. switch (M1) closes on temperature fall
- Switch Ratings:
- See Table 1 and Table 2
- Conduit Connection:
- 7/8" (22mm) hole for 1/2" conduit with 1-3/32" (28mm) knockout ring for 3/4" conduit
- Setpoint Range:
- :
- L480B, G 20° to 60°F (-5° to 15°C)
- :
- L482A 15° to 55°F (-9.4° to 13°C), with setpoint stops minimum 34°F
- Setpoint Adjustment:
- Slotted screwdriver
- Differential:
- :
- L480B, G Non-adjustable, additive, fixed at 10°F (6°C)
- :
- L482A Non-adjustable, additive, fixed at 5°F (3°C)
- Operating Temperature:
- :
- L480B, G -20° to 125°F (-11° to 52°C)
- :
- L482A 20° to 140°F (-7° to 60°C)
- Maximum Element Temperature:
- :
- L480B, G 225°F (107°C)
- :
- L482A 250°F (121°C)
- Dimensions:
- :
- L480B, G 3.3"H x 3.7"W x 2.3"D
- :
- (8.4 x 9.4 x 5.9 cm)
- :
- L482A 4.7"H x 3.9"W x 2.1"D
- :
- (11.9 x 10.1 x 5.3 cm)
- Weight:
- :
- L480B 1.5 lb (0.68 kg)
- :
- L480G 1.6 lb (0.73 kg)
- :
- L482A 2.3 lb (1.04 kg)
- Approvals:
- UL Listed file #E49725, Vol. No. 2, dated 02-09-66; Guide No. SDFY2 CSA Certified Listing G, File No. LR1620; Guide No. 400-E-0
- Warranty:
- 1 year
product series features
- Dual temperature scale plate provides both Fahrenheit and Celsius readings
- No sensing bulb, the controller operates at the coldest point (1 foot section) of the 20 ft. element for complete coverage
- Dustproof and moisture proof enclosed switch for trouble-free operation
- Horizontal or vertical mounting for installation flexibility
more information & related documents
Series Description

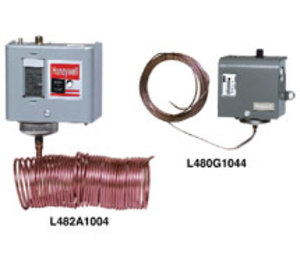

The Honeywell L480 Series low limit controllers operate electric dampers, valves and compressor or fan motors to provide temperature or limit control of air conditioning systems and refrigeration units. The L480B has an SPDT switch and automatically resets; the L480G has an SPST switch that opens on a fall in temperature and requires manual reset. The L482A has two SPST switches and manual reset; the main switch opens, and the auxiliary switch closes, on a fall in temperature.
Kele Description
AQUASTAT 110/290F MANUAL RESET
Manufacturer
Resideo
