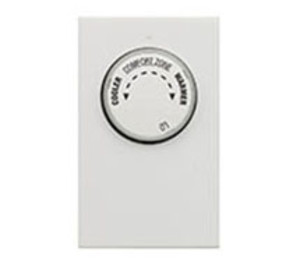

LV21-005 | Johnson Controls | Thermostats & Controllers

T-STAT/120V/240V,DOUBLE POLE HEAT,MECHANICAL

Brand:Johnson Controls

MPN:LV21-005

SKU:LV21-005

List Price:

$-.--

Today's Price:

$-.--

product specifications

Stages

Single

System Switching

Fan Switching

Yes

Type

Wall

product series specifications

Thermostat Electrical Ratings

Resistive: 22A at 120/208/240/277 VAC(2640W @ 120V, 5280W @ 240V)

Inductive: 1/2 HP @ 120V, 3/4 HP @ 240V

Physical Dimensions (when mounted):

Width = 2.75" (70 mm); Height = 4.50" (115mm); Depth = 1.50" (40mm)

Carton Pack Quantity: 5 pieces

UPC Code: 0 21079 14262 0

product series features

Easy to install and use
Clean attractive design
Contains no mercury
ETL certified (USA, Canada)
Single bi-metallic temperature sensing strip

more information & related documents

Series Description

The LUX LV Series is 120V line voltage heat only thermostats. The LV11-005 is a SPST and the LV21-005 is a DPST. Both are mercury-free and have a dial for setting cooler, warmer, or off.

Kele Description

T-STAT/120V/240V,DOUBLE POLE HEAT,MECHANICAL

Manufacturer

Johnson Controls
