A70HA-2C | Johnson Controls | Thermostats & Controllers
Temperature Control Manual Reset
Brand:Johnson Controls
MPN:A70HA-2C
SKU:A70HA-2C
List Price:
$558.00
Today's Price:
$290.16
product specifications
Supply Voltage
120-240 VAC
Type
Low Limit
Set Point Range
35 to 80 °F
Display
Mechanical
Stages
Single
System Switching
No
Fan Switching
No
Differential
5F
Controls Outputs
1 NO/NC
product series specifications
- UL Listed file #SA516:
product series features
- Automatic or manual reset models
- Long-life, snap-acting contacts
- Easy set point adjust
- One-year warranty
more information & related documents
Series Description

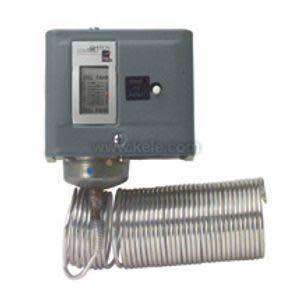

The Johnson Controls A70 Series heavy-duty temperature-limit controls incorporate a vapor charged sensing element. A70G, A70H, and A70K have a four-wire, two-circuit contact block that contains two isolated sets of contacts. The contacts are designed to transfer at set point so that when the main contact opens, the auxiliary contact closes simultaneously. Typical applications include shutdown of a ventilation system and BAS alarm indication upon low or high temperature.
Kele Description
TEMPERATURE CONTROL MANUAL RES
Manufacturer
Johnson Controls
A70 Datasheet
