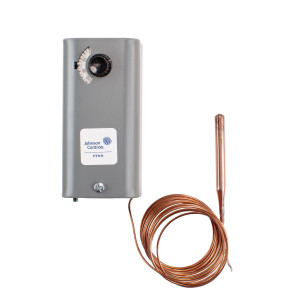

A19ABC-24C | Johnson Controls | Thermostats & Controllers
TEMP CONTROL -30/100F 8' CAP
Brand:Johnson Controls
MPN:A19ABC-24C
SKU:A19ABC-24C
List Price:
$240.00
Today's Price:
$124.80
product specifications
Supply Voltage
120-240 VAC
Type
Remote Bulb
Set Point Range
-30 to 100 °F
Display
Mechanical
Stages
Single
System Switching
No
Fan Switching
No
Differential
6F
Controls Outputs
30/100F
product series features
- SPDT switching
- Front control set point
- Adjustable differential
- No power required (A19)
- Solid state sensors (A319, A419)
- Digital display (A419)
more information & related documents
Series Description
The Johnson Controls A19 Series is a single stage, heating or cooling, SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.The A28 Series is a two stage, heating or cooling, w/2-SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.The A319 Series is a single stage, heating or cooling, SPDT temperature control that uses a Type 21 thermistor sensor. The unit uses a set point dial and operates on 120 VAC or 240 VAC with a wide adjustable differential. A separate LED indicates relay operation.The A419 Series is a single stage, heating or cooling, SPDT temperature control that uses a PTC sensor. This unit features a digital display and buttons to adjust the set point differential, setback temperature, anti-short cycle delay, and failsafe control. The unit operates on 120 or 240 VAC and a 3/8in (0.95 cm) display with H/C, F/C and setback indication. A separate LED indicates relay operation.
Kele Description
TEMP CONTROL -30/100F 8' CAP
Manufacturer
Johnson Controls
A19 Installation Sheet
