A19AAF-4C | Johnson Controls | Thermostats & Controllers

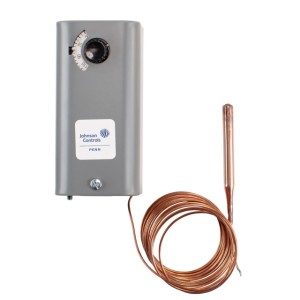

Remote Bulb Temp Control, 6' Cap, SPDT, NEMA 1, 3/8 X 5-3/4" Bulb, 40/90F
Brand:Johnson Controls
MPN:A19AAF-4C
SKU:A19AAF-4C
product specifications
Stages
Single
System Switching
No
Fan Switching
No
Controls Outputs
SPDT
Type
Remote Bulb
Set Point Range
40 to 90 °F
product series features
- SPDT switching
- Front control set point
- Adjustable differential
- No power required (A19)
more information & related documents
Series Description
The Johnson Controls A19 Series is a single stage, heating or cooling, SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.The A28 Series is a two stage, heating or cooling, w/2-SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.
Kele Description
TEMP CTRL/6FT CAP/SPDT/3/8X5-3/4IN BULB 40/90F
Manufacturer
Johnson Controls
Related Documents
A28 Installation Sheet
