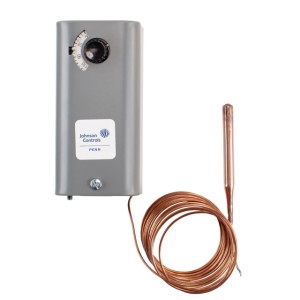

Grey rectangular thermostat box with a small black dial and a long coiled copper capillary ending in a cylindrical bulb.

A19AAD-5C | Johnson Controls | Thermostats & Controllers

Remote Bulb Temp Control, Fixed Diff 2.5+/-1.5F, SPST Open Low, 6' Cap, .366 X 2.542" Bulb

Brand:Johnson Controls

MPN:A19AAD-5C

SKU:A19AAD-5C

List Price:

$390.00

Today's Price:

$202.80

product datasheet

catalog page

Lead time of 6 days. Chat with Kele experts now

product specifications

Stages

Single

System Switching

Fan Switching

Type

Remote Bulb

Set Point Range

-30 to 50 °F

Controls Outputs

SPST

product series features

SPDT switching
Front control set point
Adjustable differential
No power required (A19)

more information & related documents

Series Description

The Johnson Controls A19 Series is a single stage, heating or cooling, SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.The A28 Series is a two stage, heating or cooling, w/2-SPDT temperature control that uses a liquid-filled sensing element and capillary. The unit has an exposed or concealed set point dial with adjustable differential, and it will switch line voltages.

Kele Description

TEMP CTRL/6FT CAP/SPST/.366X2.542IN BULB/OPL30/50F

Manufacturer

Johnson Controls
