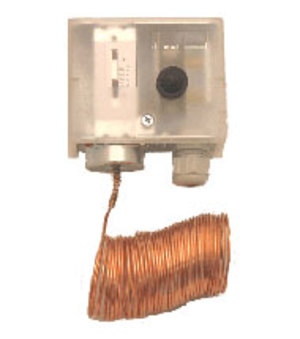

A/FS-2A | ACI | Thermostats & Controllers
T-STAT/FREEZE/AUTO/20FTCAP/2SPDT
Manufacturer:ACI
MPN:A/FS-2A
SKU:A/FS-2A
List Price:
392.70
Today's Price:
219.91
add to cart
product family specifications
Sensing Element
Vapor-filled, copper capillary tube
Output
A/FS-1, -3, -5
one SPDT Form 1C Relay
A/FS-2, -4, -6
two SPDT Form 1C Relays
Contact Rating
250 VAC, 15 (8) A
Setpoint Range*
14° to 54℉ (-10° to 12℃) field adjustable
Setpoint Differential
1.8℉ (1.0℃), fixed for auto reset
Setpoint Safety Lock
35.6℉ (2.0℃) factory set, field adjustable
Housing Rating
NEMA 1 IP40
Operating Temperature
14° to 194℉ (-10° to 65℃)
Operating Humidity
0 to 95%, non-condensing
Dimensions
3.4″H x 4.25″W x 2.1″D (8.6 x 10.8 x 5.3 cm)
product family features
- Available with 6, 10, and 20 foot length capillaries
- Adjustable set-point
- Manual reset and automatic reset versions
- CE approval
- RoHS compliant
more information & related documents
Family Description
The FS Series controllers are low limit controllers, also known as ″Freeze Stats.″ The devices were designed for use on HVAC equipment that requires low-temperature cutout protection to prevent cooling coils from freezing. They should be mounted between the heating and cooling coils on the supply side of the fan unit. They respond to the lowest temperature sensed along any 1 foot section of the sensing element. The FS Series has manual and automatic reset versions, as well as, models that feature one or two sets of SPDT contacts.
Kele Description
T-STAT/FREEZE/AUTO/20FTCAP/2SPDT
Manufacturer
ACI
