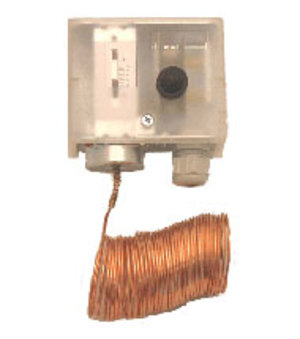

A/FLS-20-M | ACI | Thermostats & Controllers
T-STAT/FREEZE/MANUAL RESET LOW LIMIT, 20' CAP. 1 N
Brand:ACI
MPN:A/FLS-20-M
SKU:A/FLS-20-M
List Price:
$831.00
Today's Price:
$432.12
product specifications
Supply Voltage
120-240 VAC
Type
Low Limit
Set Point Range
Field Adjustable
Display
Mechanical
Stages
Single
System Switching
No
Fan Switching
No
Differential
1.8F
Controls Outputs
2 Sets SPDT Contacts
product series specifications
- Sensing Element:
- Vapor-filled, copper capillary tube
- Output:
- A/FS-1, -3, -5:
- one SPDT Form 1C Relay
- A/FS-2, -4, -6:
- two SPDT Form 1C Relays
- Contact Rating:
- 250 VAC, 15 (8) A
- Setpoint Range*:
- 14° to 54‚Ñâ (-10° to 12‚ÑÉ) field adjustable
- Setpoint Differential:
- 1.8‚Ñâ (1.0‚ÑÉ), fixed for auto reset
- Setpoint Safety Lock:
- 35.6‚Ñâ (2.0‚ÑÉ) factory set, field adjustable
- Housing Rating:
- NEMA 1 IP40
- Operating Temperature:
- 14° to 194‚Ñâ (-10° to 65‚ÑÉ)
- Operating Humidity:
- 0 to 95%, non-condensing
- Dimensions:
- 3.4‚Ä=H x 4.25‚Ä=W x 2.1‚Ä=D (8.6 x 10.8 x 5.3 cm)
product series features
- Available with 6, 10, and 20 foot length capillaries
- Adjustable set-point
- Manual reset and automatic reset versions
- CE approval
- RoHS compliant
more information & related documents
Series Description
The FS Series controllers are low limit controllers, also known as in.Freeze Stats. in. The devices were designed for use on HVAC equipment that requires low-temperature cutout protection to prevent cooling coils from freezing. They should be mounted between the heating and cooling coils on the supply side of the fan unit. They respond to the lowest temperature sensed along any 1 foot section of the sensing element. The FS Series has manual and automatic reset versions, as well as, models that feature one or two sets of SPDT contacts.
Kele Description
T-STAT/FREEZE/MANUAL RESET LOW LIMIT, 20' CAP. 1 N
Manufacturer
ACI
A/FLS Datasheet
