VT8350U5000B

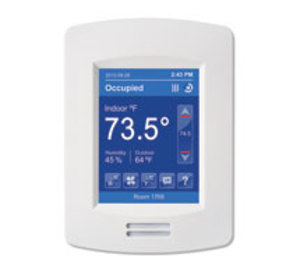

* product series image displayed

VT8350U5000B | Viconics | Thermostats & Controllers

T-STAT/FCU/RH/NO PIR/24V

Brand:Viconics

MPN:VT8350U5000B

SKU:VT8350U5000B

List Price:

$1,022.00

Today's Price:

$531.44



Availability: 43 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Supply Voltage

20-30 VAC

Type

Communicating

product series specifications

    Supply Voltage:
  • 19-30 VAC, 50/60 Hz
    Supply VA:
  • 6 VA
    Accuracy :
  • Temperature, ±0.9‚Ñâ (±0.5‚ÑÉ)
    Digital Inputs:
  • Dry contact
    Universal Input:
  • Dry contact or 10K Type 2 Model 24 thermistor
    Display:
  • Two line backlit LCD, ±0.2‚Ñâ (±0.1‚ÑÉ)
    Cover Controls:
    :
  • Zone Models Up/down/override buttons
    :
  • Heat/Cool ‚Äúon‚Äù LEDs
    :
  • FCU Models Up/down/‚ÑÉ-or-‚Ñâ/fan/mode buttons
    :
  • Fan/Heat/Cool ‚Äúon‚Äù LEDs
    Remote Sensor:
  • Thermistor, 10K Type 2 Model 24
    Control Type:
  • Proportional plus integral (PI)
    Cycles Per Hour:
  • Adjustable
    Setpoint:
  • Adjusted depending on heating or cooling mode, heating and cooling setpoints are changed simultaneously with respect to the deadband
    :
  • Cooling limits 54° to 100‚Ñâ (12‚ÑÉ to 37.7‚ÑÉ)
    :
  • Heating limits 40° to 90‚Ñâ (4.5° to 32‚ÑÉ)
    Keypad Lockout:
  • Selectable system/fan/unoccupied
    System Setting:
  • O=off, H=heating, C=cooling, A=automatic changeover
    Fan Setting:
  • L=low, M=medium, H=high, A=auto
    Wiring:
  • 16-24 AWG, 22 AWG recommended
    Color:
  • White or Silver
    Mounting:
  • Standard vertical, 2‚Ä= x 4‚Ä= box
    Operating Temperature:
  • 32° to 122‚Ñâ (0° to 50‚ÑÉ)
    Operating Humidity:
  • 0 to 95% RH (non-condensing)
    Enclosure Rating:
  • UL FR1, flame retardant plastic
    Dimensions:
  • 4.72‚Ä=H x 3.38‚Ä=W x 1.00‚Ä=D
    :
  • (12.0 x 8.6 x 2.5 cm)
    Weight:
  • 0.75 lb (0.34 kg)
    Approvals:
  • UL Listed File #E234137, cULus, CE
    Warranty:
  • 1 year

product series features

  • Five (5) customizable colors for digital touch screens
  • Supports the upload of a custom standby screen
  • Supports the display of custom messages when integrated via BACnet MS/TP
  • English, French, Spanish, Chinese, Russian and other selectable languages
  • Interchange between degrees C/ degrees F
  • BACnet MS/TP (default model)
  • ZigBee Pro wireless mesh network (optional)
  • Suitable for both commercial and hospitality markets and systems
  • Humidity sensor with on-board dehumidification strategy (model dependent)
  • Configurable fan sequence of operation

more information & related documents

Series Description

The Viconics VT8350 Series are fan coil room controllers so smart energy management has never been easier. Designed for new construction and retrofit projects, the room controllers dramatically decrease project delivery costs by reducing installation, configuration and commissioning time. No complex software or tools are required to customize functionality in order to meet your applications requirements. The room controllers provide all the advanced features and monitoring functions required by modern building automation systems in a simple compact enclosure. The VT8350 Series are specifically designed to provide exceptional temperature control of multi-speed fan coil units. All models can provide advanced occupancy routines and automatic energy savings during occupied periods without sacrificing occupant comfort. When compared to traditional building automation controllers, the VT8350 Series fan coil room controllers provide unmatched return on investment. For more advanced needs, custom LUA script programming available. (-LS models)

Kele Description

T-STAT/FCU/RH/NO PIR/24V

Manufacturer

Viconics
