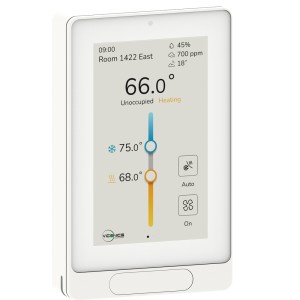

TRC3500B11X-VC | Schneider Electric Buildings | Thermostats & Controllers
TRC LOW VOLTAGE FCU & ZONE: BACNET MSTP, RH SENSOR, PIR SENSOR, WHITE
Brand:Schneider Electric Buildings
MPN:TRC3500B11X-VC
SKU:TRC3500B11X-VC
List Price:
$1,090.29
Today's Price:
$566.95
Log in for customized pricingproduct specifications
Display
LED
Application
Commercial,Hospitality
Operating Temperature Range
32 to 122 °F, 0 to 50 °C
Enclosure Construction
Polycarbonate
product series specifications
Input: 24 Vac +/-15 % recommended, Absolute Max 29.5 Vac, 50/60 Hz or 24 Vdc +/-15%
Peak Device Consumption: Up to 6 VA with CO2 sensor Plus Output Load (max total 94 VA)
Digital Outputs: 5 (D1 - D5)
Universal inputs: 8 (U1- U8)
Environmental Conditions: Indoor Use Only
Ambient Temperature - Operating: 0 to 50 °C (32 to 122 °F)
Humidity - Operating: 0 to 95 % RH non-condensing
Ambient Temperature – Storage: -30 to 50 °C (-22 to 122 °F)
Dehumidification Setpoint Range: 30 to 95% R.H.
Enclosure: Polycarbonate
Display: Glass
LED Indicator: Optional Halo (RGB)
product series features
- Dynamic HVAC optimization with AI Eco Mode
- Equipped with an embedded Passive Infrared Sensor (PIR) for a configurable occupancy detection
- Automatic energy savings
- Configurable for °C/°F temperature measurement
- 22 selectable languages
- Available in 2 casing color options: white and black
- Optional halo LED backlight that reflects the mode of operation or notification on the wall behind the device
- Configurable proportional band for room temperature control
- Fully programmable control sequences using Lua scripting
- Configurable Scheduler
- Change of Value (COV) function for building management system integration
- Universal inputs and outputs including a CO2sensor input, and a fresh air station input
- Humidity sensor with onboard dehumidification sequence
- Light sensor screen brightness adjustment according to ambient lighting for an optimal user experience
- Optional proximity sensor to turn on the screen using a hand gesture without touching the device
more information & related documents
Series Description
The all-in-one Viconics Room Controllers TRC3500 and TRC6500 are Room Controllers that are suitable for commercial and high-end hospitality markets. It is an application-specific and programmable Room Controller with different color and screen theme options. A perfect balance of simplicity and sophistication. Select a black or white theme for the screen. Display custom standby images on the screen to reinforce your brand and provide a more enjoyable occupant experience.
Kele Description
TRC LOW VOLTAGE FCU & ZONE: BACNET MSTP, RH SENSOR, PIR SENSOR, WHITE
Manufacturer
Schneider Electric Buildings
Related Documents
TRC Series Installation Instructions
