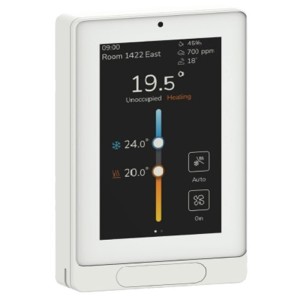

SXWTRC3500B11X | Schneider Electric Buildings | Thermostats & Controllers
TRC LOW VOLTAGE FCU & ZONE: BACNET MSTP, RH SENSOR, PIR SENSOR, WHITE
Brand:Schneider Electric Buildings
MPN:SXWTRC3500B11X
SKU:SXWTRC3500B11X
product specifications
Controls Outputs
FCU
Type
Programmable
Display
Touchscreen
Set Point Range
32 to 122 °F
Supply Voltage (Nominal)
24 VAC
product series specifications
Screen size: 4.3 inch
Screen Resolution: 480 x 800 (226 PPI)
Screen Type: Capacitive
Screen Control: Tapping/sliding/swapping/stylus compatible
Halo Light: Yes (RGB)- optional
Material: Plastic frame with glass cover
Terminal Marking: Enhanced (with color coding)
Processor: Speed 280MHz (Flash 2MB, SRAM 1.4 MB)
Memory: SPI flash 32MB, EEPROM 2MB, Octo SPI flash 32 MB, HyperRAM 16 MB
Built-in Sensor: Temp - Yes
Humidity - ±2 %RH
PIR - Onboard Standard-up to 9 m +/- 55 deg
Proximity - Yes (for short distance detection)- optional
IAQ - Optional (field installable CO2)
Wired Protocol: BACnet MS/TP , Modbus RTU (RS-485)- Single pair Ethernet (for BACnet/IP future support)
Wireless Support: BACnet IP/Wifi - Optional Oboard (selected models)- WPA3 2.4/5.0 Ghz, Zigbee Pro - Optional Oboard (selected models)
BACnet Profile: B-ASC
NFC/Bluetooth: Yes (for future wireless commissioning applications)
Orientation: Portrait/ Landscape (future development)
I/O Count: Full version - 9 Output (5DO+4UO) / 8 Universal Inputs, SER version - 4 Universal (TBD)
USB: USB type C
product series features
- Customizable design
- Powerful integration
- Simple User Interface
- Flexible installation
more information & related documents
Series Description
<p>Customizable, all-in-one touchscreen room controller wall-mounted room controller ensures an enhanced user experience with unparalleled customization options and modern aesthetics. Tailor-made to fit any complex, high-end HVAC application with dozens of different use case variations, it delivers significant energy savings thanks to customizable control.</p>
Kele Description
TRC LOW VOLTAGE FCU & ZONE: BACNET MSTP, RH SENSOR, PIR SENSOR, WHITE
Manufacturer
Schneider Electric Buildings
SXWTRC3500B00X_Product Data sheet
