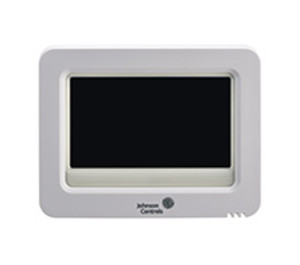

* product series image displayed

T9100 | Johnson Controls | Thermostats & Controllers

COMM TCHSCRN TSTAT W HUMIDITY CONTROL INTEG WIFI

Brand:Johnson Controls

MPN:T9100

SKU:T9100

List Price:

$1,036.00

Today's Price:

$538.72

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Communicating

Display

Touchscreen

Set Point Range

35 to 99 °F

Supply Voltage (Nominal)

24 VAC

product series specifications

Temperature Control Range: 35 - 99°F (2 - 37°C)

Operating Temperature: 35 - 104°F (2 - 40°C)

Storage Temperature Range: -22 - 122°F (-30 - 50°C)

Electrical Input Frequency: 50/60 Hz ± 10%

Input Power: 24 V (20-30 Vac) 50/60 Hz at 4.8 VA

Output Terminal W – Heating: 20-30 Vac 0.01-0.4 A

Output Terminal Y – Cooling: 20-30 Vac 0.01-0.8 A

Output Terminal G – Fan: 20-30 Vac 0.01-0.8 A

Terminal Connections: Wall plate w/terminal blocks

Memory Card: SD (Secure Digital)

Mounting: Direct mount

Dimensions: 4.0"H x 5-3/16"W x 1-3/32"D (102 H x 132 W x 28 D mm)

Approvals: UL/cUL Listed

product series features

T9000 Integral Skyport Cloud Services Wi-Fi Key -provides facility managers and end users with remote access to the digital room thermostat
Programmable occupancy schedule - reduces operating expenses by controlling the room based on occupant schedules
Local equipment runtime trending - provides easy access to energy usage information; shows how much energy was used to heat and/or cool over a 7-day period
Password protection capability - enforces setpoint energy policies by preventing tampering with the digital room thermostat settings in public spaces
Multi-lingual display options - provide a user interface in English, French, and Spanish
SD memory card input - reduces configuration time by making inputting and exporting data between digital room thermostats quick and easy
Configurable alerts - send messages to the digital room thermostat when certain conditions occur, such as when the room temperature exceeds a user-specified value

more information & related documents

Series Description

The Johnson Controls 9000 Series High-Resolution Color Touch Screen Digital Room Thermostats are multi-functional devices that offer a simple-to-use color touch screen user interface. These stand-alone digital room thermostats with optional wireless accessories are designed to program and configure temperature control of a wide range of heating and cooling equipment, in both residential and commercial applications.

Kele Description

COMM TCHSCRN TSTAT W HUMIDITY CONTROL INTEG WIFI

Manufacturer

Johnson Controls
