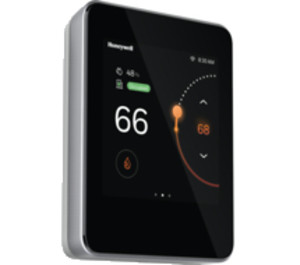

TC500A-N | Honeywell | Thermostats & Controllers
T-STAT/3H-3C/CONV/5H-3C HP/COMM/BACNET
Brand:Honeywell
MPN:TC500A-N
SKU:TC500A-N
List Price:
$1,054.00
Today's Price:
$548.08
product specifications
Supply Voltage
24 VAC
Type
Communicating
Set Point Range
40 to 120 °F
Display
CTP
Controls Outputs
5H/3C Heat Pump, 3H/3C Conventional
product series specifications
- †Supply Voltage:
- †24 VAC
- †Operating Temperature Range:
- †40°F to 120°F†
- †Operating Humidity Range:
- †10 to 90% relative humidity (non-condensing)
- †Stages:
- † Standard:
- †3 heat / 3 cool
- † Heat Pump:
- †5 heat / 3 cool
- †Mounting Position:
- †Vertical
- †Display:
- †Digital touchscreen; 24 BPP TFT with CTP/4" Diagonal
- †Communication Baud Rates:
- † BACnet IP:
- †Over WiFi
- † WiFi:
- †802.11 b/g/n
- † Bluetooth:
- †BLE 4.2 with 1Mbps; Classic bluetooth with max 3Mbps
- †Dimensions:
- †4 15/32 inches (13.7mm) H x 3 19/32 inches (91.2mm) W
- †Weight:
- †0.8 lbs
- †Warranty:
- †5 years
- †Certifications:
- †CE, FCC, ICES, UL/cUL, RoHs, REACH, Title 24, BTL, ASHRAE, LEED, Prop65
- †Standards:
- †EN 60730-1, EN 60730-2-9, EN 301489-1, EN 301489-17, EN 300328, EN 301893, EN 62479, UL60730-1, UL60730-2-9, Title 47 part 15 subpart B, Title 47 part 15 subpart C, RSS 210, ICES-003
product series features
- Fully communicating design via WiFi
- BACnet, Bluetooth, and Sylk
- Multiple fan speed options
- Monitors and controls roof top, heat pump, conventional, or air handling units
more information & related documents
Series Description
TC500A-N Thermostat is an advanced, configurable, connected device for commercial buildings. It controls and monitors RTU, AHU, Heat Pump equipment, and their configurations. This device communicates over Wi-Fi, Bluetooth, BACnet IP, Sylk, easily integrates with the building automation system. The firmware of the device can be upgraded via Wi-Fi network. The device has four universal terminals and a pair of Sylk terminals to connect with sensors or other accessories. It also has a built-in temperature sensor, humidity sensor, and proximity sensor.
Kele Description
T-STAT/3H-3C/CONV/5H-3C HP/COMM/BACNET
Manufacturer
Honeywell
