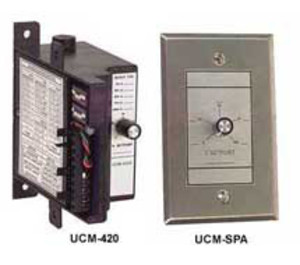

* product series image displayed

UCM-SPA-C | Kele | Thermostats & Controllers

CUSTOM RANGE SETPOINT POT

Brand:Kele

MPN:UCM-SPA-C

SKU:UCM-SPA-C

List Price:

$97.25

Today's Price:

$50.57

catalog page

Call 877.826.9045 for availability

product specifications

Type

Potentiometer

Set Point Range

Custom Range

Supply Voltage (Nominal)

24 VAC

product series specifications

Supply Voltage: 24 VAC/VDC ±10%

Supply Current: 130 mA maximum @ 24 VAC, 65 mA maximum @ 24 VDC

Remote Setpoint Input: 4-20 mA, 1-5 VDC, PWM

Local Setpoint Input: 4-20 mA, 1-5 VDC, three-wire potentiometer or PreCon two-wire potentiometer (ST-S3E-XA)

PWM Time Base: 0.1-2.65, 5.2, 12.85, 25.6, or 0.59-2.93 sec

Analog Output: 4-20 mA sourcing

Output Resolution: 255 steps

Output Burden: 650Ω maximum

Input: 4-20 mA, 1-5 VDC or PreCon Type III thermistor (thermistor range 50° to 90°F)

Input Impedance: 250Ω (mA signal), 10 k (voltage signal)

LED Status: Green = Power, Red= PWM Output

Accuracy: ±1%

Remote Setpoint Potentiometer:UCM-SPA 0-10kΩ

Enclosure: UL94V-0

Operating Temperature: 32° to 158°F (0° to 70°C)

Operating Humidity:5 to 95% (non-condensing)

RoHS Statement: Yes

Warranty: 18 months

product series features

PI control
DIP switch/jumper programming
Selectable throttling range
Selectable integral reset rate
Direct or reverse-acting
Setpoint potentiometer on unit
Optional DIN rail mounting
Optional setpoint potentiometer with stainless steel wall plate (UCM-SPA)

more information & related documents

Series Description

The Kele Model UCM-420A is a low cost microprocessor-based Proportional plus Integral (PI) controller that may be used for a wide variety of control applications. All setup and programming is done by DIP switches and bottle plug jumpers on the Model UCM-420A. Set points may be local and/or remote. The output may be direct- or reverse-acting.

Kele Description

CUSTOM RANGE SETPOINT POT

Manufacturer

Kele
