USB POWER KIT | Johnson Controls | Thermostats & Controllers
T-STAT/15FT MICRO--USB CABLE AND USB WALL ADAPTER. OPTION FOR THE GEO SERIES.
Brand:Johnson Controls
MPN:USB POWER KIT
SKU:USB POWER KIT
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Power Pack
product series specifications
Dimensions: (Horizontal Orientation) Height 3.12" (79mm), Width 5.7" (145mm) Depth 1.32" (33mm)
Heat/Cool Terminals: RH, RC, B, W1, O, Y1, G, W2, C, Y2
Electrical Ratings: 1.5 Amps per terminal @ 24Volts
Control Range: Control Range 45°F to 90°F (7°C to 32°C)
Display Range: 32°F to 99°F (0°C to 37°C)
Temperature Differential: Adjustable from ±0.25°Fto 2.25°F
Accuracy: ±1°F over range of 45°F to 90°F
Operating Limits: +14°F to 122°F (+10°C to 50°C)
Storage Limits: +40°F to 140°F (+20°C to 60°C)
Operating Humidity: 20% to 90% non-condensing
Moisture and Dust: Up to IP20
WiFi Specifications: 2.4GHz 802.11 b/g/n; SHA256RSA data encryption; Network commissioning through iOS/Android app; Program and system settings stored on the device or WPS for set up and function with or without WiFi
Compatible With: Universal compatibility for conventional heat and A/C up to 2h/2c and heat pump systems with up to 2h/1c including AUX/EMERG heat. Hydronic systems of 2-wire heat only -(hot water baseboard and radiator) and gas millivolt heaters.
Not Compatible With: 120V/240V line voltage systems
Warranty: 5 years
product series features
- Geofencing: Home and Away Aware
- Smart Scheduling: Utility cost estimated
- Smart tips: For savings and seasonality tips
- IAQ Fan: works with LUX airSMART IAQ
- Reporting: Energy and run time usage
- Apps: iOS and Android
- Includes wall plate
- Works with Amazon Alexa enabled devices and Google Assistant with C-wire or LUX Power Bridge
more information & related documents
Series Description

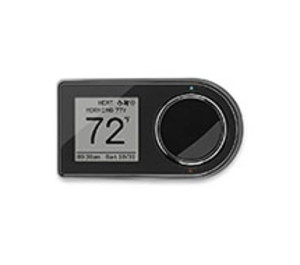

The LUX GEO Series is a geo-fencing, Wi-Fi-programmable thermostat for conventional, hydronic, and heat pump systems. The GEO-xx thermostats work with conventional 2H/2C HVAC systems, 2-wire heat-only radiator or hot water baseboard units, and heat pump systems with 2H/1C with auxiliary/emergency heat. They come in a white or black version and provide 7-day programmable options. Power options include standard 24V with a common wire, 2 AA lithium batteries, or the USB micro-port (wall adapter and cord not included). LUX GEO thermostats can be mounted vertically or horizontally.
Kele Description
T-STAT/15FT MICRO--USB CABLE AND USB WALL ADAPTER
Manufacturer
Johnson Controls
