TW2XAXH

TW2XAXH | Veris Industries | Temperature Sensors & Transmitters

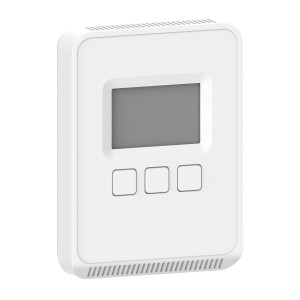

SENSOR, TEMP, WALL, 10K TYPE 3 THERMISTOR

Manufacturer:Veris Industries

MPN:TW2XAXH

SKU:TW2XAXH

list price:

51.49

25.75



(login for better pricing)
USD

availability:Usually Ships in Less Than 10 Business Days

add to cart

arrow

product family specifications

Operating Environment

Input Power







 Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz

Analog Output

 Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V

Operating Temperature Range

 0 to 50°C (32 to 122°F)

Operating Humidity Range

 0 to 95% RH non-condensing

Housing Material

 High-impact ABS plastic

Terminal Block Torque

 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)

Temperature Transmitter Option

Sensor Type



 Solid state, integrated circuit

Accuracy

 ±0.2°C (±0.4°F) typical

Resolution

 0.1°C (0.1°F)

Range

 0 to 50°C (32 to 122°F)

Display Models

Touchscreen



 61 mm (2.4 in), color, backlit, capacitive, 240x300 px

 Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable

 Timeout override: Display timeout

 Lockout override: Touchscreen/button lockout

LCD

 52mm (2.05 in), segmented with 3 buttons

 Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable

 Timeout override: Display timeout

 Lockout override: Touchscreen/button lockout

Setpoints

Temperature Setpoint



 0 to 10V output

 Scale: 10 to 35 °C (50 to 95 °F) /

 0 to 50 °C (32 to 122 °F)

Fan Speed Setpoint

 0 to 10V output

 Off 0V, Low 3.3V, Med. 6.7V, High 10.0V



Wiring Terminals

Terminal Blocks



 Screw terminals, 18-24 AWG

Screw Terminal Torque

 0.2 N-m (2.0 in-lbF) max.

Warranty

 Limited 5 years

Approvals

 UL 916, European conformance CE:

 EN61000-6-2

 EN61000-6-3

 EN61000 Series - industrial immunity

 EN 61326-1

 FCC Part 15 Class B, REACH, RoHS,

 RCM (Australia), ICES-003 (Canada)



product family features

  • Flexible
  • Calibration-free
  • Easy to install

more information & related documents

Family Description

The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs. The TW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons, and blank.

Kele Description

SENSOR, TEMP, WALL, 10K TYPE 3 THERMISTOR

Manufacturer

Veris Industries
