TW2XAXC | Veris | Temperature Sensors & Transmitters

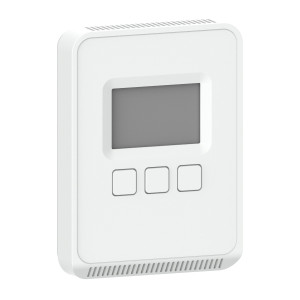

Veris TW2 Series Temperature Sensor, Wall, 1K Ohm Platinum RTD
Brand:Veris
MPN:TW2XAXC
SKU:TW2XAXC
List Price:
$70.00
Today's Price:
$36.40
Log in for customized pricingproduct specifications
Type
RTD
Sensor Element
1K Platinum RTD 385
Display
No
Setpoint
No
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Input Power: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Analog Output Selectable: 4 to 20 mA, 0 to 5 V, 0 to 10 V
Operating Temperature Range: 0 to 50 °C (32 to 122 °F)
Operating Humidity Range: 0 to 95% RH non-condensing
Housing material: High-impact ABS plastic
Terminal Block Torque: 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)
Temperature Transmitter Option:
Sensor Type: Solid state, integrated circuit
Accuracy: ±0.2°C (±0.4°F) typical
Resolution: 0.1°C (0.1°F)
Range: 0 to 50°C (32 to 122°F)
Wiring Terminals:
Terminal Blocks: Screw terminals, 18-24 AWG
Screw Terminal: Torque 0.2 N-m (2.0 in-lbF) max.
Warranty: Limited Warranty 5 years
product series features
- Flexible
- Calibration-free
- Easy to install
more information & related documents
Series Description
The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs. The TW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons, and blank.
Kele Description
SENSOR, TEMP, WALL, 1K PLATINUM RTD
Manufacturer
Veris
Related Documents
TW2 Installation Guide
