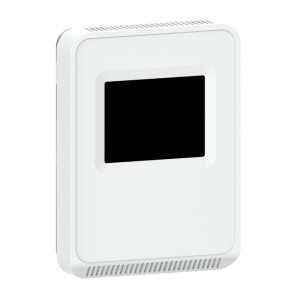

White rectangular wall sensor with ventilation slots and hidden electronics

TW2TAXK | Veris | Temperature Sensors & Transmitters

Veris TW2 Series Temperature Sensor, Wall, Color Touchscreen, 10K Thermistor with 11K Shunt

Brand:Veris

MPN:TW2TAXK

SKU:TW2TAXK

List Price:

$275.00

Today's Price:

$143.00

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Thermistor

Sensor Element

10K with 11K Shunt

Display

Yes

Setpoint

Yes

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment

Output Signal

Resistance

product series specifications

Input Power: Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz

Analog Output Selectable: 4 to 20 mA, 0 to 5 V, 0 to 10 V

Operating Temperature Range: 0 to 50 °C (32 to 122 °F)

Operating Humidity Range: 0 to 95% RH non-condensing

Housing material: High-impact ABS plastic

Terminal Block Torque: 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)

Temperature Transmitter Option:

Sensor Type: Solid state, integrated circuit

Accuracy: ±0.2°C (±0.4°F) typical

Resolution: 0.1°C (0.1°F)

Range: 0 to 50°C (32 to 122°F)

Wiring Terminals:

Terminal Blocks: Screw terminals, 18-24 AWG

Screw Terminal: Torque 0.2 N-m (2.0 in-lbF) max.

Warranty: Limited Warranty 5 years

product series features

Flexible
Calibration-free
Easy to install

more information & related documents

Series Description

The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, or 0 to 10Vdc outputs. The TW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons, and blank.

Kele Description

SENSOR, TEMP, WALL, TOUCHSCREEN, 10K THERMISTOR W/11K SHUNT

Manufacturer

Veris
