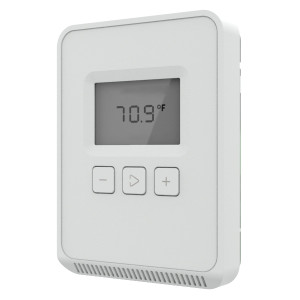

Small white wall sensor with a digital screen reading 70.9 degrees and plus/minus arrow buttons.

TW2LAXA | Veris | Temperature Sensors & Transmitters

Veris TW2 Series Sensor, Wall, Temperature, Segmented LCD, Temperature Transmitter

Brand:Veris

MPN:TW2LAXA

SKU:TW2LAXA

List Price:

$288.00

Today's Price:

$149.76

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Transmitter

Sensor Element

RTD

Sensor Type

Transmitter only

Display

Yes

Setpoint

Yes

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment

Output Signal

Resistance

product series specifications

Supply Voltage: 12 to 30 VDC @ 30 mA (current model only) : 12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)

Accuracy: Thermistor: 2.2k, 3k, 20k, 100k: ±0.11° (0.2°) 10k Type 2 & 3: ± 0.06° (0.1°)

RTD: 100, 100 385 curve: ±0.17° (0.3°)

Analog: ±1° (±0.5°)

Sensor Type: Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range: Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Analog: 50° to 95°F (10° to 35°C)

Output (analog models): 4- 20 mA @ 500Ω, 0-5/10 VDC

Temperature Coefficient: Thermistor: Negative temperature coefficient RTD: Positive temperature coefficient

Mounting: Directly to Wall Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Enclosure: White plastic Weight: 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TE & TW Series Economy Wall Thermistor and RTD Sensor provides precision room temperature sensing for building automation system. The sensing element is made of a highly stable, precision thermistor material or platinum RTD. Besides a variety of Thermistor and RTD types, one can also have 1K or 10K ohm Setpoint with or without override.

Kele Description

WALL LCD 10K T3 THMS

Manufacturer

Veris
