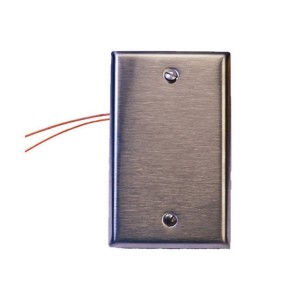

Stainless temperature plate with orange wires

TPC0 | Veris | Temperature Sensors & Transmitters

TP flush mount temperature sensor, 1K Ω platinum RTD.

Brand:Veris

MPN:TPC0

SKU:TPC0

List Price:

$59.00

Today's Price:

$30.68

product datasheet

installation instructions

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

RTD

Sensor Element

1K Platinum RTD 385

Display

Setpoint

Enclosure Rating

NEMA 1

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to Wall

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)

Enclosure:Stainless Steel

Weight: 0.2 lb (0.09 Kg)

Warranty: 5 years

more information & related documents

Series Description

The Veris TP Series Stainless Steel Flush-Mount Thermistor and RTD Sensors provide room temperature sensing for building automation systems. The sensing element is made of a highly stable, thermistor material or platinum RTD. This design provides moisture/vapor resistance and is bonded to a stainless steel plate. This sensor is intended for interior use only.

Kele Description

WALL S/S PLATE 1K OHM 385 RTD
