THTRWD0S | Tasseron Sensors | Temperature Sensors & Transmitters

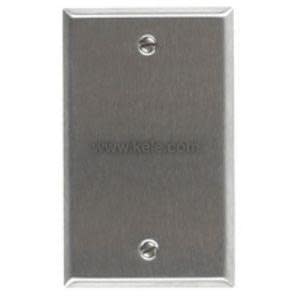

Q-Room Staineless Steel Plate 3K Temperature Sensor
Brand:Tasseron Sensors
MPN:THTRWD0S
SKU:THTRWD0S
List Price:
$22.44
Today's Price:
$11.67
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Metallic
Probe Length
None
Sensor Element
3K Thermistor
Housing Style
Stainless Steel Plate
Display
No
Setpoint
No
Accessory
T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Enclosure:
Q-Room Mini: Injection-molded 30% glass filled nylon
Q-Room Plate: Stainless steel or white steel
Mounting:
Q-Room Plate: Two integrated mounting holes in enclosure, with two matching mounting screws
Connection: 2-pole AWG 22-16 / 0.35-1.5mm2 spring-loaded, Patent Pending Quick Connect System
Sensor Element: Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire, Ni1000-891, 2-wire
Sensor Value: NTC 10KΩ type 2 @ 25°C / 77°F
NTC 10KΩ type 3 @ 25°C / 77°F
NTC 20KΩ @ 25°C / 77°F
NTC 3KΩ @ 25°C / 77°F
RTD Pt1000 1000Ω @ 0°C / 32°F
RTD N11000-891 891Ω @ 0°C / 32°F
Accuracy: NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F
Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F
Ni1000 DIN 43760, ± 0.5°C / ± 0.9 °F @ 0°C / 32°F
Range: 0...50°C / 32...122°F
Approvals: CE, RoHS compliant
Warranty: 5-year limited warranty
product series features
- Made in the USA
- Patent Pending Quick Connect System for fast installation
- NTC thermistors and RTD elements available
- Compatible with any control system
- CE and RoHS compliant
- 5 year limited warranty
more information & related documents
Series Description
The Tasseron Q-Room Series are high quality Indoor Temperature Sensor. Patent Pending Quick Connect system that eliminates wire nuts for a faster more reliable installation and reduces installation costs. Available measuring elements interface with all control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are guaranteed for the highest reliability.
Kele Description
Q-ROOM STAINLESS PLATE NTC 3K
Manufacturer
Tasseron Sensors
Tasseron Q-ROOM-PLATE-Datasheet 2016-09-29 v03
