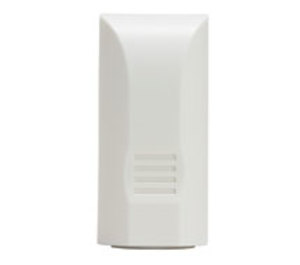

THTRAAA0 | Tasseron Sensors | Temperature Sensors & Transmitters

ROOM AERO NTC 10K-2 S/O 0-10K

Brand:Tasseron Sensors

MPN:THTRAAA0

SKU:THTRAAA0

List Price:

$75.48

Today's Price:

$39.25

Lead time of 5 days. Chat with Kele experts now

product series specifications

Enclosure:

Q-Room Mini: Injection-molded 30% glass filled nylon

Q-Room Plate: Stainless steel or white steel

Mounting:

Q-Room Plate: Two integrated mounting holes in enclosure, with two matching mounting screws

Connection: 2-pole AWG 22-16 / 0.35-1.5mm2 spring-loaded, Patent Pending Quick Connect System

Sensor Element: Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire, Ni1000-891, 2-wire

Sensor Value: NTC 10KΩ type 2 @ 25°C / 77°F

NTC 10KΩ type 3 @ 25°C / 77°F

NTC 20KΩ @ 25°C / 77°F

NTC 3KΩ @ 25°C / 77°F

RTD Pt1000 1000Ω @ 0°C / 32°F

RTD N11000-891 891Ω @ 0°C / 32°F

Accuracy: NTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F

Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F

Ni1000 DIN 43760, ± 0.5°C / ± 0.9 °F @ 0°C / 32°F

Range: 0...50°C / 32...122°F

Approvals: CE, RoHS compliant

Warranty: 5-year limited warranty

product series features

Made in the USA
Patent Pending Quick Connect System for fast installation
NTC thermistors and RTD elements available
Compatible with any control system
CE and RoHS compliant
5 year limited warranty

more information & related documents

Series Description

The Tasseron Q-Room Series are high quality Indoor Temperature Sensor. Patent Pending Quick Connect system that eliminates wire nuts for a faster more reliable installation and reduces installation costs. Available measuring elements interface with all control manufacturers. Accurate interchangeable thermistors and RTD's ensure low drift and are guaranteed for the highest reliability.

Kele Description

ROOM AERO NTC 10K-2 S/O 0-10K

Manufacturer

Tasseron Sensors
