TE-205-M-5
* product family image displayed

TE-205-M-5 | MAMAC Systems | Temperature Sensors & Transmitters

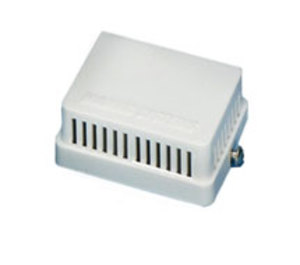

TEMP SENSOR, ROOM, 1K BALCO RTD, VENTED WALL, NO SETPOINT, NO OVERRIDE

Manufacturer:MAMAC Systems

MPN:TE-205-M-5

SKU:TE-205-M-5

List Price:

23.46

Today's Price:

13.14



USD
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Accuracy

Thermistor

±0.36℉ (0.2℃)

RTD

100Ω & 1000Ω

0.1%

1000Ω Nickel

0.5℉

1000Ω Balco

0.5℉

Sensor Type

Thermistor

3 kΩ, 10 kΩ Type II & III, 20 kΩ, 100kΩ

RTD

100Ω & 1000Ω Platinum 385 Curve, 1000Ω Nickel, 1000Ω Balco

Temperature Range

Thermistor/RTD

-40° to 210℉ (-40° to 100℃)

Temperature Coefficient

Thermistor

Negative temperature coefficient

RTD

Positive temperature coefficient

Enclosure

White plastic with aluminum plate

Mounting

Directly to wall or BKT-1 bracket to mount to single gang box

Wiring Terminations

4.5″ (13 cm) of 22 AWG pigtails

Weight

0.2 lb (0.1 kg)

Approvals

CE, RoHs

Warranty

1 year

product family features

  • ±0.36℉ (0.2℃) thermistor accuracy
  • ±0.27℉ (0.15℃) or ±0.54℉ (0.30 ℃) RTD accuracy
  • Wide selection of thermistor and RTD curves
  • Vented housing for quick temperature response
  • Durable plastic housing and base plate
  • Easy to mount to wall or back box

more information & related documents

Family Description

The MAMAC Model TE205A Surface-Mount Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

TEMP SENSOR, ROOM, 1K BALCO RTD, VENTED WALL, NO SETPOINT, NO OVERRIDE

Manufacturer

MAMAC Systems
