ST-S91P | Kele | Temperature Sensors & Transmitters
1000Ω Surface-Mount RTD @ 32°F (0°C), 375 platinum curve (Green leads)
Brand:Kele
MPN:ST-S91P
SKU:ST-S91P
List Price:
$79.47
Today's Price:
$41.32
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
None
Sensor Element
1K Platinum RTD 375
Housing Style
Wall
Display
No
Setpoint
No
Override
No Override
Accessory
T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2,SSPL-1,KT1,ISPL-1,BKT-1
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Accuracy: ±0.36°F (0.2°C)
Thermistor: ±0.36°F (0.2°C)
RTD:
Type 63: ±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
RTD:
Type 63: 1000Ω Nickel
Type 71, 81: 100Ω Pt 385 Curve
Type 85: 1000Ω Pt 385 Curve
Type 91: 1000Ω Pt 375 Curve
Temperature Range: -40° to 221°F (-40° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: Max 0.04% after 1k hours @ 500 °F
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Beige plastic with aluminum plate
Mounting: Directly to wall or BKT-1 bracket to mount to single gang box
Wiring Terminations: 8' (2.4m) of 24 AWG pigtails with pre-stripped ends, type 71 & 81 have 18" leads
Weight: Weight: 0.1 lb (0.05 Kg)
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- ±0.36 degrees F (0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (0.15 degrees C) or ±0.54 degrees F (0.30 degrees C) RTD accuracy
- Wide selection of thermistor and RTD curves
- Vented housing for quick temperature response
- Adaptable with many options
- Traditional tan cover with brushed aluminum faceplate
- Durable plastic housing and base plate
- Easy to mount to wall or back box
more information & related documents
Series Description

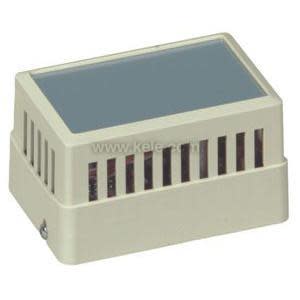

The Precon Model ST-S* P Surface-Mount Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.
Kele Description
WALL SENSOR (P) 1000 OHM
Manufacturer
Kele
