ST-S63K | Kele | Temperature Sensors & Transmitters

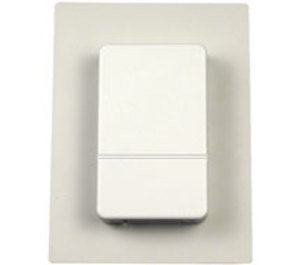

WALL KELE ENC 1000 OHM NICKL RTD
Brand:Kele
MPN:ST-S63K
SKU:ST-S63K
List Price:
$47.06
Today's Price:
$24.47
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
None
Sensor Element
1K Ohm Nickle-Iron Balco
Display
No
Setpoint
No
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Accuracy:Thermistor: ±0.36°F (±0.2°C);
RTD:
Type 63:±0.72°F (0.40°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.27°F (0.15°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252kΩ, 3kΩ, 10kΩ Type II, III & III w/11K shunt, 20kΩ, 100kΩ
RTD:
Type 63: 1000Ω Nickel
Type 71, 81: 100Ω Pt 385 Curve
Type 85: 1000Ω Pt 385 Curve
Type 91: 1000Ω Pt 375 Curve
Temperature Range: Thermistor/RTD: -40° to 221°C (-40° to 105°F)
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°C (0.13°F) over five years
RTD: Max 0.04% after 1k hours @ 500 °C
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Enclosure Rating: NEMA 1, White plastic
Mounting: Directly to wall or single gang box
Wiring Terminations: Terminals
Weight: 0.15 lbs (0.07 Kg)
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- Attractive new design
- ±0.36 degrees F (0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (0.15 degrees C) or 0.54 degrees F (0.30 degrees C) RTD accuracy
- Durable housing
- White color
- Thermistor or RTD
- Locking cover screws
more information & related documents
Series Description
The PreCon Model ST-S*K White Decorator Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The thermistor element is made of a highly stable, pre-aged precision thermistor material accurate to within ±0.36 degrees F (0.2 degrees C) while the platinum RTD is avaialble in 100 Ohm and 1000 Ohm models. Both are compatable with most HVAC systems.
Kele Description
WALL KELE ENC 1000 OHM NICKL RTD
Manufacturer
Kele
