ST-S5P | Kele | Temperature Sensors & Transmitters

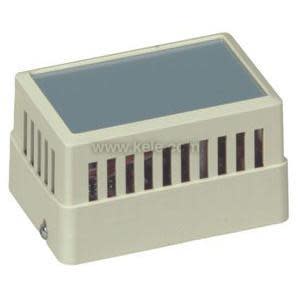

Surface-Mount Room Sensor, 1000Ω Nickel-Iron, Balco Sensor, Plastic Ventilated Room Enclosure
Brand:Kele
MPN:ST-S5P
SKU:ST-S5P
List Price:
$107.00
Today's Price:
$55.64
Log in for customized pricingproduct specifications
Type
RTD
Probe Length
None
Sensor Element
1K Ohm Nickle-Iron Balco
Housing Style
Plastic Ventilated
Display
No
Setpoint
No
Override
No Override
Enclosure Rating
NEMA 1
Accessory
KT1,UR,T5U-2,T5U-3,T5U-4,T63U-2,T63U-3,T63U-4
Application
Room Temperature,Classroom Temperature,Office Temperature
Output Signal
Resistance
product series specifications
Sensitivity:
Type 5: 2.2Ω/°F @ 70°F (21°C)
Type 77: 2.48Ω/°F @ 70°F (21°C) two red wires
Type 78: 4.96Ω/°F @ 70°F (21°C) two gray wires
Sensor Type:
Type 5: 1000Ω Nickel ±0.12% @ 70°F (21°C)
Type 77: 1000Ω Balco ±0.12% @ 70°F (21°C)
Type 78: 2000Ω Balco ±0.12% @ 70°F (21°C)
Temperature Range: -30° to 240°F (34° to 115°C)
Sensor Type:
Type 5, 77: 1000Ω ±0.12% @ 70°F (21°C)
Type 78: 2000Ω ±0.12% @ 70°F (21°C)
Mounting: Directly to wall or single gang box
Warranty: 1 year
more information & related documents
Series Description
The Kele Wire Wound Nickel-Iron RTD Balco Room Sensors are used to provide reliable, accurate temperature readings in surface-mount room environments. The room sensors feature a stainless steel insulated plate, a standard plastic ventilated enclosure, or a deluxe executive enclosure design. The stainless steel plate is ideal for areas of vandalism or where the sensor can be easily knocked off the wall. The sensors are designed for interior use only in the temperature range of -30 degrees to 140 degrees F (-34 degrees to 60 degrees C).
Kele Description
WALL ENC 1000 OHM RTD NICKEL
Manufacturer
Kele
