ST-S3P

ST-S3P | Kele | Temperature Sensors & Transmitters

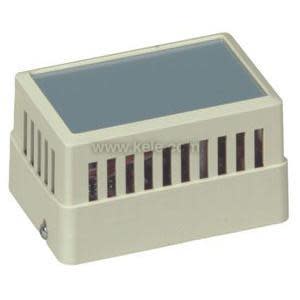

10,000Ω Surface-Mount Thermistor @ 77°F (25°C), Type III (Gray leads)

Brand:Kele

MPN:ST-S3P

SKU:ST-S3P

List Price:

$31.47

Today's Price:

$16.36



Availability: 151 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2, SSPL-1, KT1, ISPL-1, BKT-1

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment

Housing Material

Poly

Housing Rating

NEMA 1

Housing Style

Wall

Output

Resistance

Override

No Override

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71:
  • †+/-0.0774°F (0.043°C)

    Type 81, 85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91:
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III /11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71, 81:
  • †100‚Ѷ Pt 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91:
  • †1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
  • †NEMA 1, Beige plastic with aluminum plate
    Mounting:
  • †Directly to wall or BKT-1 bracket to mount to single gang box
    Wiring Terminations:
  • †8' (2.4m) of 24 AWG pigtails pre-stripped, Type 71 & 81 sensors have 18‚Ä= leads
    Weight:
  • †0.1 lb (0.05 Kg)
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Lifetime warranty
  • ±0.36 degrees F (0.2 degrees C) thermistor accuracy
  • ±0.27 degrees F (0.15 degrees C) or ±0.54 degrees F (0.30 degrees C) RTD accuracy
  • Wide selection of thermistor and RTD curves
  • Vented housing for quick temperature response
  • Adaptable with many options
  • Traditional tan cover with brushed aluminum faceplate
  • Durable plastic housing and base plate
  • Easy to mount to wall or back box

more information & related documents

Series Description

The Precon Model ST-S* P Surface-Mount Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

WALL SENSOR 10K OHM TYPE III THMS
