ST-S3EW

ST-S3EW | Kele | Temperature Sensors & Transmitters

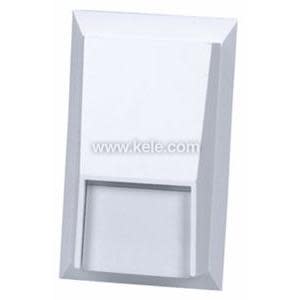

10,000Ω Executive Thermistor Thermistor @ 77°F (25°C), Type III (Gray Leads), Executive White Enclosure With Narrow Back Plate

Brand:Kele

MPN:ST-S3EW

SKU:ST-S3EW

List Price:

$32.80

Today's Price:

$17.06



Availability: 138 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment

Housing Material

Poly

Housing Rating

NEMA 1

Housing Style

Executive

Output

Resistance

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71:

  • †+/-0.0774°F (0.043°C)

    Type 81, 85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91:
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71, 81:
  • †100‚Ѷ PT 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91:
  • 1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
    ST-S*E:
  • †NEMA 1, Beige plastic with tan metal face plate
    ST-S*EW:
    Mounting:
  • †Directly to wall or single gang box
    Wiring Terminations:
  • †Terminals
    Weight:
  • †0.15 lb (0.07 Kg)
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Lifetime warranty
  • ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
  • ±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 degrees C) RTD accuracy
  • Ultra high accuracy optional
  • Wide selection of thermistor or RTD curves
  • Vented housing for quick temperature response
  • Adaptable with many options
  • Traditional beige or white covers
  • Durable plastic housing and base plate
  • Easy to mount to wall or electrical box

more information & related documents

Series Description

The Precon Model ST-S_E and ST-S_EW Executive Thermistor and RTD Sensor provides precise room temperature sensing for HVAC applications and Building Automation Systems, BAS. Available in beige or white, these sensors feature an active sensing element made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

WALL EXEC WHIT ENC 10K TYP 3 THMS

Manufacturer

Kele

Related Documents

PDF - ST-SEW DatasheetST-SEW Datasheet
