ST-S3D-XM | Kele | Temperature Sensors & Transmitters

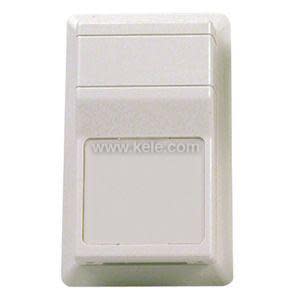

Wall Delta 10K 3 Thermistor Pushbutton
Brand:Kele
MPN:ST-S3D-XM
SKU:ST-S3D-XM
List Price:
$73.20
Today's Price:
$38.06
Log in for customized pricingproduct specifications
Type
Thermistor
Probe Length
None
Sensor Element
10K Type 3 Thermistor
Display
No
Setpoint
No
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (±0.2°C)
RTD:
Type 61: ±0.36°F (±0.2°C)
Type 71: +/-0.0774°F (0.043°C)
Type 81, 85: ±0.36°F (±0.2°C)
Type 91: ±0.54°F (0.30°C)
Sensor Type:
Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
RTD:
Type 61: 1000Ω Nickel
Type 71, 81: 100Ω Pt 385 Curve
Type 85: 1000Ω Pt 385 Curve
Type 91: 1000Ω Pt 375 Curve
Temperature Range: Thermistor/RTD: -40° to 221°F (-40° to 105°C)
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Temperature Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: 0.09°F (0.05°C) over five years
Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)
Enclosure: Plastic
Mounting: Directly to wall or BRT-1 bracket to mount to single gang box
Wiring Terminations: 8" (2.4m) of 24 AWG pigtails prestripped, Type 71 and 81 sensors have 18" leads
Dimensions: 2.8"H x 4.5"W x 1.0"D (7 x 11.4 x 2.5 cm)
Weight: 0.1 lb (0.6 Kg)
Approvals: CE
Warranty: Lifetime
product series features
- Lifetime warranty
- ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 degrees C) RTD accuracy
- Ultra high accuracy optional
- Wide selection of thermistor or RTD curves
- Vented housing for quick temperature response
- Adaptable with many options
- Durable plastic housing and base plate
- Easy to mount to wall or electrical box
more information & related documents
Series Description
The Precon Model ST-S*D Wall Delta style Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.
Kele Description
WALL DELTA 10K 3 THMS PUSHBUTTON
Manufacturer
Kele
