ST-S11K

ST-S11K | Kele | Temperature Sensors & Transmitters

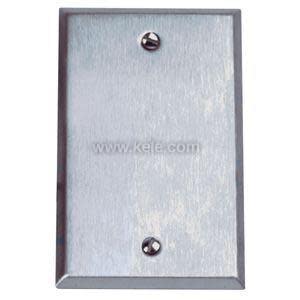

Wall Stainless Steel Plate Sensor Sensor 10K Type 3 W/11K Shunt Thermistor

Brand:Kele

MPN:ST-S11K

SKU:ST-S11K

List Price:

$49.21

Today's Price:

$25.59



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA

Housing Rating

NEMA 1

Output

Resistance

Probe Length

None

Sensor Element

10K Thermistor Type 3 with 11K Shunt

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71:
  • †+/-0.0774°F (0.043°C)
    Type 81, 85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91:
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71, 81:
  • †100‚Ѷ Pt 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91:
  • †1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
  • †NEMA 1, Brushed stainless steel
    Mounting:
  • †Directly to wall or single gang box
    Wiring Terminations:
  • †8' of 24 AWG pigtails prestripped ends, Type 71 & 81 sensors have 18‚Ä= leads
    Weight:
  • †0.2 lb (0.1 Kg)
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Lifetime warranty
  • ±0.36 degrees F (0.2 degrees C) thermistor accuracy
  • ±0.27 degrees F (0.15 degrees C) or 0.54 degrees F (0.30 RTD degrees C) RTD accuracy
  • Wide selection of thermistor and RTD curves
  • Insulated backing for room temperature response
  • Vandal-resistant flush mounting
  • Adaptable with many options
  • 430 Stainless steel finish
  • Easy to mount to wall or back box
  • Standard size plate to cover mounting holes

more information & related documents

Series Description

The Precon Model ST-S Stainless Steel Flush Mount Sensor from PreCon provides precise room temperature sensing for Building Automation Systems, BAS, and HVAC applications. The active sensing element is made of a highly stable precision thermistor material or Platinum RTD. This material is ruggedized to provide moisture/vapor resistance and is bonded to a 430 stainless steel plate. The back is insulated to reduce interior wall temperature influence. This sensor is intended for interior use only.

Kele Description

WALL S/S PLATE SENSOR SNSR 10K TYPE 3 W/11K SHUNT
