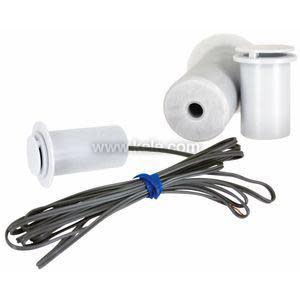

ST-BP42 | Kele | Temperature Sensors & Transmitters

Accuracy: Thermistor: ±0.36°F (±0.2°C)

RTD:

Type 63: ±0.72°F (0.40°C)

Type 71: ±0.0774°F (0.043°C)

Type 81, 85: ±0.27°F (0.15°C)

Type 91: ±0.54°F (0.30°C)

Sensor Type:

Thermistor: 2.252kΩ, 3kΩ, 10kΩ Type II, III & III w/11K shunt, 20kΩ, 100kΩ

RTD:

Type 63: 1000Ω Nickel

Type 71, 81: 100Ω Pt 385 Curve

Type 85: 1000Ω Pt 385 Curve

Type 91: 1000Ω Pt 375 Curve

Temperature Range: Thermistor/RTD: -40° to 221°F (-40° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Temperature Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: Max 0.04% after 1k hours @ 500°C

Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)

Mounting: Directly to wall

Wiring Terminations: All Others: 8' (2.4m) of 24 AWG pre-stripped pigtails, Type 71 & 81 sensors have 18 gauge leads

Enclosure Rating: NEMA 1, White plastic

Weight: 0.1 lb (0.05 Kg)

Approvals: CE

Warranty: Lifetime
