ST-BP24 | Kele | Temperature Sensors & Transmitters

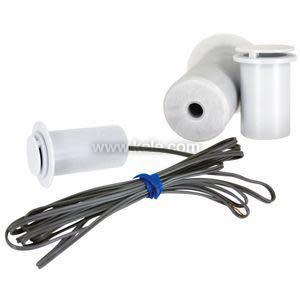

Wall 10K 2 Ohm Thermistor Paintable Button Style
Brand:Kele
MPN:ST-BP24
SKU:ST-BP24
List Price:
$46.14
Today's Price:
$23.99
product specifications
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA
Housing Rating
NEMA 1
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Setpoint
No
Type
Thermistor
Display
No
product series specifications
- Accuracy:
- Thermistor:
- †±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- Type 63:
- †±0.72‚Ñâ (0.40‚ÑÉ)
- Type 71:
†+/-0.0774°F (0.043°C)
- Type 81, 85:
- †±0.27‚Ñâ (0.15‚ÑÉ)
- Type 91:
- †±0.54‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
- RTD:
- Type 63:
- †1000‚Ѷ Nickel
- Type 71, 81:
- †100‚Ѷ, Pt 385 Curve
- Type 85:
- †1000‚Ѷ, Pt 385 Curve
- Type 91:
- †1000‚Ѷ, Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- †-40° to 221‚Ñâ (-40 to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- †Negative temperature coefficient
- RTD:
- †Positive temperature coefficient
- Termpaerature Stability:
- Thermistor:
- †0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- †Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Mounting:
- †Directly to wall
- Wiring Terminations:
- All Others:
- †8' (2.4m) of 24 AWG prestripped pigtails, Type 71 & 81 sensors have 18‚Ä= leads
- Enclosure Rating:
- †NEMA 1, White plastic
- Weight:
- †0.1 lb (0.05 Kg)
- Approvals:
- †CE
- Warranty:
- †Lifetime
product series features
- Lifetime sensor warranty
- Paintable housing
- Flush mount
- Installs in drywall
- No back box required
- Virtually undetectable when painted
more information & related documents
Series Description
The Precon ST-BP* Series Paintable Button Style Flush-Mount Thermistor and RTD Wall Sensors provide precision room temperature sensing for building automation systems. The ST-BP Series drastically descreases the footprint of the traditional box sensor so that it becomes virtually invisible once it is painted to match the decor. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD. This design is intended for interior use only is bonded to a plastic paintable housing.
Kele Description
WALL 10K 2 OHM THMS PAINTABLE BUTTON STYLE
Manufacturer
Kele
