ST-B24A | Kele | Temperature Sensors & Transmitters

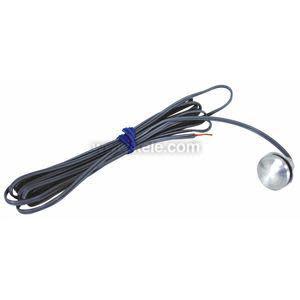

10,000Ω Button Style Thermistor @ 77°F (25°C), Type II (Gray Leads), Aluminum Housing
Brand:Kele
MPN:ST-B24A
SKU:ST-B24A
List Price:
$211.00
Today's Price:
$109.72
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2, TB-A, TS-B, TB-S
Feature
Aluminum Housing
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA
Housing Rating
NEMA 1
Housing Style
Button
Lead Length
8 ft
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Setpoint
No
Type
Thermistor
Display
No
product series specifications
- Accuracy:
- Thermistor:
- †±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- Type 63:
- †±0.72‚Ñâ (0.40‚ÑÉ)
- Type 71:
†+/-0.0774°F (0.043°C)
- Type 81, 85:
- †±0.27‚Ñâ (0.15‚ÑÉ)
- Type 91:
- †±0.54‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
- RTD:
- Type 63:
- †1000‚Ѷ Nickel
- Type 71, 81:
- †100‚Ѷ Pt 385 Curve
- Type 85:
- †1000‚Ѷ Pt 385 Curve
- Type 91:
- †1000‚Ѷ Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- †Negative temperature coefficient
- RTD:
- †Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- †0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- †Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Enclosure Rating:
- †NEMA 1, Brass, aluminum,304 Stainless steel housing
- Mounting:
- †Directly to the wall
- Wiring Terminations:
- †8' (2.4m) of 24 AWG pigtails with prestripped ends, type 71 & 81 have 18" leads
- Weight:
- †0.2 lb (0.1 Kg)
- Approvals:
- †CE
- Warranty:
- †Lifetime
product series features
- Lifetime warranty
- ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (±0.15 degreesC) or ±0.54 degreesF (±0.30 degreesC) RTD accuracy
- Ultra high accuracy available
- Wide selection of thermistor and RTD curves
- Optional brass, steel, aluminum metal button style housing
- Small, nearly invisible footprint
more information & related documents
Series Description
The Precon ST-B* Series Button Style Flush-Mount Thermistor and RTD Sensors provide precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD. This design provides moisture/vapor resistance and is bonded to either brass, steel or aluminum button style housingeasily mountable into any wall. This sensor is intended for interior use only.
Kele Description
WALL ALUM BUTTON SENSOR 10K TYPE 2 THERMISTOR
Manufacturer
Kele
