KTR24 | Kele | Temperature Sensors & Transmitters

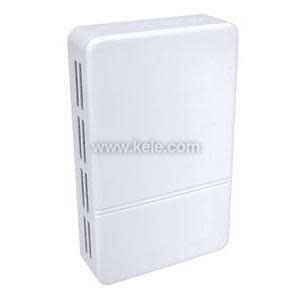

Kele Room Sensor, 10,000Ω Thermistor @ 77°F (25°C), Type II
Brand:Kele
MPN:KTR24
SKU:KTR24
List Price:
$17.66
Today's Price:
$9.18
product specifications
Accessory
T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
Housing Material
Poly
Housing Rating
NEMA 1
Housing Style
Decorator
Output
Resistance
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Setpoint
No
Type
Thermistor
Display
No
product series specifications
- Accuracy:
- Thermistor:
- ±0.50‚Ñâ (0.28‚ÑÉ)
- RTD:
- ±0.60‚Ñâ (0.33‚ÑÉ)
- Sensor Type:
- Thermistor:
- 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
- RTD:
- Type 71, 81:
- 100Ω Pt 385 Curve
- Type 85:
- 1000Ω Pt 385 Curve
- Type 91:
- 1000Ω Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- Negative temperature coefficient
- RTD:
- Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- Max 0.04% after 1k hours @ 500 ‚ÑÉ
- Heat Dissipation:
- :
- 2.7 mW/°C (power needed to raise the temperature 1°C)
- Enclosure Rating:
- NEMA 1, White plastic
- Mounting:
- Directly to wall or single gang back box
- Wiring Terminations:
- Terminals
- Weight:
- 0.2 lb (0.09 Kg)
- Approvals:
- CE
- Warranty:
- 3 years
product series features
- Economical
- Attractive new design
- Three-year warranty
- ±0.5 degrees F (0.28 degrees C) accuracy
- Durable housing
- White color
- Thermistor or RTD
- Locking cover screws
more information & related documents
Series Description
The Kele Model KTR Room Temperature Sensor is a cost-effective room temperature sensor with an accuracy of ±0.5 degrees F (0.28 degreesC). The thermistor is made of a very stable, pre-aged material that offers the reliability needed in control systems. The platinum RTD comes in 100 ohm and 1000 ohm and is compatible with most HVAC systems and as part of a Building Automation Systems, BAS. All sensors come with a three-year warranty.
Kele Description
TEMP SENSOR, ROOM, 10K TYPE II, DECORATOR, NO SETP
Manufacturer
Kele
