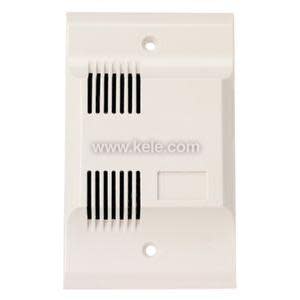

Beige sensor wall plate with vents and two mounting holes.

KTES11K-XD | Kele | Temperature Sensors & Transmitters

10,000Ω Room Thermistor @ 77°F (25°C), Type III (gray leads), Dual sensors

Brand:Kele

MPN:KTES11K-XD

SKU:KTES11K-XD

List Price:

$61.70

Today's Price:

$32.08

catalog page

Lead time of 14 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Probe Length

None

Sensor Element

10K Thermistor Type 3 with 11K Shunt

Housing Style

Plastic Ventilated

Display

Setpoint

Enclosure Rating

NEMA 1

Accessory

T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Feature

Dual Sensors

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.50°F (±0.28°C)

RTD: ±0.60°F (±0.33°C)

Sensor Type:

Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ

RTD:

Type 71, 81: 100Ω Pt 385 Curve

Type 85: 1000Ω Pt 385 Curve

Type 91: 1000Ω Pt 375 Curve

Temperature Range:

Thermistor/RTD: -40° to 221°F (-40° to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Temperature Stability:

Thermistor: Negative temperature coefficient

RTD: Max 0.04% after 1k hours @ 500°C

Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature 1°C)

Enclosure Rating: NEMA 1, White plastic

Mounting: Directly to wall or single gang box

Wiring Terminations: Terminals

Weight: 0.2 lb (0.10 Kg)

Approvals: CE

Warranty: 3 years

product series features

Economical
Attractive design
Three-year warranty
±0.5 degrees F (±0.28 degrees C) accuracy
Durable housing
White color

more information & related documents

Series Description

The Kele KTES* Series Room Thermistor and RTD Temperature Sensor is a cost-effective room temperature thermistor with an accuracy of ±0.5 degrees F (±0.28 degrees C). The thermistor is made of a very stable, pre-aged material that offers the reliability needed in most HVAC systems, and it comes with a three-year warranty.

Kele Description

TEMP SENSOR, ROOM, 10K TYPE III 11K SHUNT, PLASTIC VENTILATED

Manufacturer

Kele
