TE-6314P-1 | Johnson Controls | Temperature Sensors & Transmitters

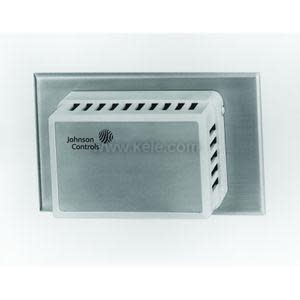

Temp Probe Sensor, 1000 Ohm Nickel, Wall Mount, Plastic Enclosure
Brand:Johnson Controls
MPN:TE-6314P-1
SKU:TE-6314P-1
product specifications
Enclosure Rating
NEMA 1
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA
Sensor Element
1K Ohm Nickle-Iron Balco
Setpoint
No
Type
RTD
Display
No
Output Signal
Resistance
product series specifications
Accuracy:
Room/Probe: ± 0.34°F (± 0.19°C)
Averaging: ± 0.34°F (± 0.19°C)
Sensor Type: 1000 O nickel @ 70°F (21°C)
Temperature Range: -50° to 220°F (-46° to 104°C)
Sensitivity: Approx 3 O /°F (5.4 O /°C)
Operating Temperature: -50° to 122°F (-46° to 50°C)
Enclosure: PVC conduit box
Wiring Terminations: 6" (15.24 cm) of 22 AWG
Probe: Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel
Wall: Thin film on circuit board with coating
Averaging: 0.093" (0.24 cm) copper
Warranty: 1 year
product series features
- Easy to mount
- Proven long performance
- Many mounting styles
- Single assembly ordering
- PVC enclosure
- Stainless steel insertion probe
more information & related documents
Series Description
The Johnson Controls TE-6300 Series Room 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The room sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.
Kele Description
WALL 1K OHM NI RTD
Manufacturer
Johnson Controls
Related Documents
TE6300 Installation Manual
