TE500AS121E2TP | Greystone Energy Systems | Temperature Sensors & Transmitters

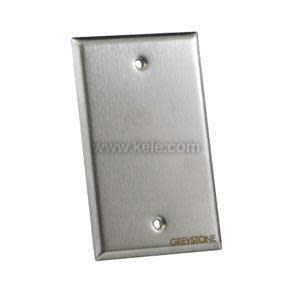

Stainless Steel Room Temperature Transmitter, 1000 Ω Platinum, IEC 751, 385 Alpha, thin film, Voltage 0-10 Vdc, 0 to 50°C (32 to 122°F), Tamperproof Screws
Brand:Greystone Energy Systems
MPN:TE500AS121E2TP
SKU:TE500AS121E2TP
product specifications
Accessory
UR, DCP-1.5-W, DCPA-1.2
Feature
Transmitter, Security Screws
Application
Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA
Housing Material
Metallic
Housing Rating
NEMA 1, IP50
Housing Style
Stainless Steel Plate
Output
0 - 10 V
Probe Length
None
Sensor Element
1K Platinum RTD 385
Setpoint
No
Transmitter Temperature Range
32 to 122 °F (0 to 50 °C)
Type
RTD
Display
No
more information & related documents
Series Description
The Greystone Energy Systems TE500AD Platinum Room Temperature Transmitter Series provides stable, accurate room sensing for temperature control and building automation systems, and it is CE approved for level-one applications. The attractive vented housing mounts easily and is constructed of a durable plastic.The TE500AS Stainless steel Platinum Room Temperature Transmitter Series provides stable, accurate room sensing for temperature control and building automation systems, and it is CE approved for level-one applications. The transmitter mounts easily to a 2 in x 4 in single gang box. The TE511F/512F Heavy Duty wall Platinum Temperature Transmitter Series provides stable, accurate room sensing for temperature control and building automation systems, and it is CE approved for level-one applications. The transmitter has LCD display. TXRC Platinum Room Temperature Transmitter Series provides stable, accurate room sensing for temperature control and building automation systems.
Kele Description
WALL S/S PLATE TEMP TRANS 0-50C 0-10VDC TAMPERPROOF
Manufacturer
Greystone Energy Systems
TE500AD AS Installation manual
