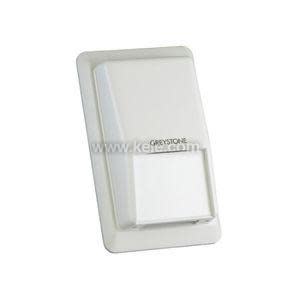

TE200AD8APAS | Greystone Energy Systems | Temperature Sensors & Transmitters

Designer Room Temperature Sensor, 2.252K Ω NTC Thermistor, ±0.2°C, 20-30K Linear Slide pot for Setpoint Control (call for other values), Concealed Pushbutton Momentary Switch - N.O.

Brand:Greystone Energy Systems

MPN:TE200AD8APAS

SKU:TE200AD8APAS

List Price:

$105.00

Today's Price:

$54.60

(login for better pricing)

Lead time of 8 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA

Housing Material

Poly

Housing Rating

NEMA 1

Housing Style

Executive

Output

Resistance

Override

Probe Length

None

Sensor Element

2.2K Thermistor

Setpoint

Yes

Type

Thermistor

Display

product series specifications

Accuracy:

±0.36‚Ñâ (±0.2‚ÑÉ)

±0.54‚Ñâ (±0.3‚ÑÉ)

Sensor Type:

2,252‚Ñ¶, 3,000‚Ñ¶, 10,000‚Ñ¶ Type II & III, 20,000‚Ñ¶

100‚Ñ¶ Platinum 385 curve, 1,000‚Ñ¶ Platinum 385 curve

Temperature Coefficient:

Negative temperature coefficient

Positive temperature coefficient

32° to 122‚Ñâ (0° to 70‚ÑÉ)

NEMA 1, plastic

6‚Ä= leads

0.2 lb (0.09 Kg)

CE, RoHs

5 year

product series features

±0.36 degrees F (±0.2 degrees C) thermistor accuracy
±0.54 degrees F (±0.3 degrees C) RTD accuracy
Wide selection of thermistor or RTD curves
Vented housing for quick temperature response
Durable plastic housing and base plate
Easy to mount to wall or electrical box

more information & related documents

Series Description

The Greystone Energy Systems Model TE200AD Series Executive Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

WALL SENS DESG 2252K OHM THM 20-30K POT CONCEALED

Manufacturer

Greystone Energy Systems
