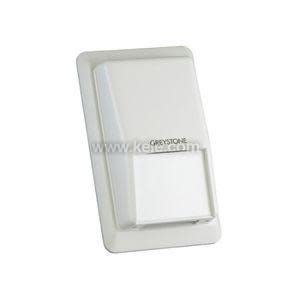

Angled white wall sensor device with rectangular cover plate.

TE200AD7APBS | Greystone Energy Systems | Temperature Sensors & Transmitters

Designer Room Temperature Sensor, 10,000 Ω Type 3, NTC Thermistor, ±0.2°C, 20-30K Linear Slide pot for Setpoint Control (call for other values), Exposed Pushbutton Momentary Switch - N.O.

Brand:Greystone Energy Systems

MPN:TE200AD7APBS

SKU:TE200AD7APBS

List Price:

$97.25

Today's Price:

$50.57

product datasheet

installation instructions

catalog page

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Housing Style

Executive

Display

Setpoint

Yes

Override

Enclosure Rating

NEMA 1

Accessory

T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA

Output Signal

Resistance

product series specifications

Accuracy: Thermistor: ±0.36°F (±0.2°C)

RTD: ±0.54°F (±0.3°C)

Sensor Type: Thermistor: 2,252Ω, 3,000Ω, 10,000Ω Type II & III, 20,000Ω

RTD: 100Ω Platinum 385 curve, 1,000Ω Platinum 385 curve

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Operating Temperature: 32° to 122°F (0° to 70°C)

Enclosure Rating: NEMA 1, plastic

Wiring Terminations: 6 or more leads

Weight: 0.2 lb (0.09 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

±0.36 degrees F (±0.2 degrees C) thermistor accuracy
±0.54 degrees F (±0.3 degrees C) RTD accuracy
Wide selection of thermistor or RTD curves
Vented housing for quick temperature response
Durable plastic housing and base plate
Easy to mount to wall or electrical box

more information & related documents

Series Description

The Greystone Energy Systems Model TE200AD Series Executive Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

WALL SENS DESG 10K TYP3 THM. 20-30K POT EXPOSED

Manufacturer

Greystone Energy Systems
