TE200AD2AS | Greystone Energy Systems | Temperature Sensors & Transmitters

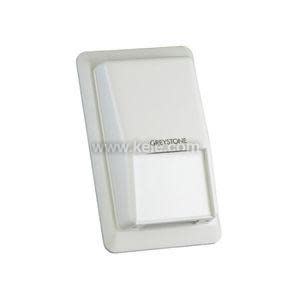

Designer Room Temperature Sensor, 100 Ω Platinum, IEC 751, 385 Alpha, Thin Film, Concealed Pushbutton Momentary Switch - N.O.
Brand:Greystone Energy Systems
MPN:TE200AD2AS
SKU:TE200AD2AS
List Price:
$126.00
Today's Price:
$65.52
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
None
Sensor Element
100 Ohm Platinum RTD 385
Housing Style
Executive
Display
No
Setpoint
No
Override
Override
Accessory
T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.36°F (±0.2°C)
RTD: ±0.54°F (±0.3°C)
Sensor Type: Thermistor: 2,252Ω, 3,000Ω, 10,000Ω Type II & III, 20,000Ω
RTD: 100Ω Platinum 385 curve, 1,000Ω Platinum 385 curve
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Operating Temperature: 32° to 122°F (0° to 70°C)
Enclosure Rating: NEMA 1, plastic
Wiring Terminations: 6 or more leads
Weight: 0.2 lb (0.09 Kg)
Approvals: CE, RoHS
Warranty: 5 years
product series features
- ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
- ±0.54 degrees F (±0.3 degrees C) RTD accuracy
- Wide selection of thermistor or RTD curves
- Vented housing for quick temperature response
- Durable plastic housing and base plate
- Easy to mount to wall or electrical box
more information & related documents
Series Description
The Greystone Energy Systems Model TE200AD Series Executive Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.
Kele Description
WALL SENS DESG 100 OHM RTD CONCEALED OR
Manufacturer
Greystone Energy Systems
Related Documents
TE200 Datasheet 2016
