TE200AD13APBS | Greystone Energy Systems | Temperature Sensors & Transmitters

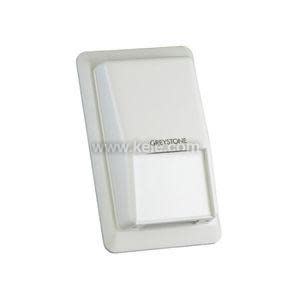

Designer Room Temperature Sensor, 1000 Ω Nickel, Class B, DIN 43760, 20-30K Linear Slide pot for Setpoint Control (call for other values), Exposed Pushbutton Momentary Switch - N.O.

Brand:Greystone Energy Systems

MPN:TE200AD13APBS

SKU:TE200AD13APBS

List Price:

$124.00

Today's Price:

$64.48

(login for better pricing)

Lead time of 12 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, DCP-1.5-W, DCPA-1.2

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment, Duct Temperature, Immersion Temperature, Outside Air Temperature, OSA

Housing Material

Poly

Housing Rating

NEMA 1

Housing Style

Executive

Output

Resistance

Override

Probe Length

None

Sensor Element

1K Ohm Nickle-Iron Balco

Setpoint

Yes

Type

RTD

Display

product series specifications

Accuracy: Thermistor: ±0.36°F (±0.2°C)

RTD: ±0.54°F (±0.3°C)

Sensor Type: Thermistor: 2,252O, 3,000O, 10,000O Type II & III, 20,000O

RTD: 100O Platinum 385 curve, 1,000O Platinum 385 curve

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Operating Temperature: 32° to 122°F (0° to 70°C)

Enclosure Rating: NEMA 1, plastic

Wiring Terminations: 6 or more leads

Weight: 0.2 lb (0.09 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

±0.36 degrees F (±0.2 degrees C) thermistor accuracy
±0.54 degrees F (±0.3 degrees C) RTD accuracy
Wide selection of thermistor or RTD curves
Vented housing for quick temperature response
Durable plastic housing and base plate
Easy to mount to wall or electrical box

more information & related documents

Series Description

The Greystone Energy Systems Model TE200AD Series Executive Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.

Kele Description

WALL SENS DESG 1K NICKEL RTD 20-30K POT EXPOSED

Manufacturer

Greystone Energy Systems
