TE-WSS-B | Dwyer Instruments | Temperature Sensors & Transmitters

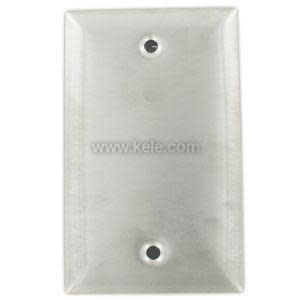

Stainless Steel Plate Temperature Room Sensor, 10K Ω Type II Thermistor
Brand:Dwyer Instruments
MPN:TE-WSS-B
SKU:TE-WSS-B
List Price:
$36.00
Today's Price:
$18.72
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Metallic
Sensor Element
10K Type 2 Thermistor
Housing Style
Stainless Steel Plate
Display
No
Setpoint
No
Accessory
T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA
Output Signal
Resistance
product series specifications
Accuracy: Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B ±0.3°C @ 0°C
Temperature Limits: Operating -40 to 140°F (-40 to 60°C)
Housing Material: 304 SS wall plate
Weight: 2.3 oz (65 g)
product series features
- SS flush plate design
- Standard single gang junction box cover plate mounting
more information & related documents
Series Description
The TE-WSS Series stainless steel wall plate temperature sensor measures the ambient air temperature in classrooms and industrial environment.
Kele Description
SS WALL PLATE TEMP SENSOR 10K TYPE II THERMISTOR
Manufacturer
Dwyer Instruments
Related Documents
TE-WSS Series Datasheet
