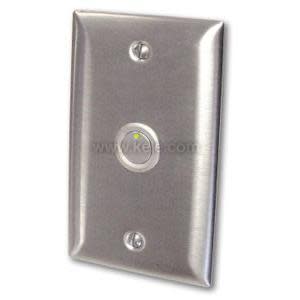

A brushed metal single‑gang wall plate featuring a small round illuminated button in the center, with two screw holes above and below.

BA/1K-SP-O2R24 | BAPI | Temperature Sensors & Transmitters

Room Temperature Sensor, 1K RTD 385, Stainless Steel Plate, No Setpoint, Override, Red LED

Brand:BAPI

MPN:BA/1K-SP-O2R24

SKU:BA/1KSPO2R24

List Price:

$170.82

Today's Price:

$88.83

product datasheet

installation instructions

catalog page

Lead time of 7 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Metallic

Sensor Element

1K Platinum RTD 385

Housing Style

Stainless Steel Plate

Display

LED

Setpoint

Override

Enclosure Rating

NEMA 1

Accessory

T81U-XR,T85U-XR,T91U-XR,UR,DCP-1.5-W,DCPA-1.2

Feature

Red LED

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment

Output Signal

Resistance

product series specifications

Accuracy: Thermistor: ±0.36°F (0.2°C)

RTD:

385 Curve: ±0.27°F (0.15°C)

375 Curve: ±0.54°F (0.30°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III

RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve

Temperature Range: 32° to 158°F (-0° to 70°C)

Stability:

Thermistor: < 0.036 F (0.02C) per year

RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1C), 0.4°C/mW at 0°C

Enclosure Rating: NEMA 1, ABS plastic, UL94V-0

Mounting: Directly to wall or single gang box

Wiring Terminations: Terminals

Weight: 0.25 lb (0.1 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

±0.36 degrees F (±0.2 degrees C) Thermistor accuracy
±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 RTD degrees C) RTD accuracy
±2.7 degrees F (±1.5 degrees C) semiconductor accuracy
Lifetime limited sensor warranty
Wide selection of thermistor, RTD, and semiconductor curves

more information & related documents

Series Description

The BA Series Room Sensors are designed specifically for HVAC applications. The room sensors come in a variety of enclosure styles, including Delta, PreCon, stainless steel plate, and BAPIstat II. Each room sensor is available with thermistor, RTD, and semiconductor sensors, which makes the BA sensors compatible with every Building Automation Systems, BAS, in use today.

Kele Description

WALL S/S PLATE 1K OHM RTD 385 RED LED

Manufacturer

BAPI
