BA/10K3-R | BAPI | Temperature Sensors & Transmitters

WALL DELTA SENSOR 10K THMS 3

Brand:BAPI

MPN:BA/10K3-R

SKU:BA/10K3-R

List Price:

$39.59

Today's Price:

$20.59



Availability: 7 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Application

Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment

Housing Rating

NEMA 1

Output

Resistance

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Setpoint

No

Type

Thermistor

Display

No

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    385 Curve:
  • ±0.27‚Ñâ (0.15‚ÑÉ)
    375 Curve:
  • ±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermmistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100Œ©, 1000Œ©, 385 curve; 1000Œ©, 375 curve
    Temperature Range:
  • 32° to 158°F (-0° to 70°C)
    Stability:
    Thermistor:
    RTD:
  • 0.14 °C with 6,000 continuous hours at 400 °C
    Heat Dissipation:
  • 2.7 mW/°C (power need to raise the temperature 1C), 0.4°C/mW at 0°C
    Enclosure Rating:
  • NEMA 1, ABS plastic, UL94V-0
    Mounting:
  • Directly to wall or single gang box
    Wiring Terminations:
  • Terminals
    Weight:
  • 0.25 lb (0.1 Kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • ±0.36 degrees F (±0.2 degrees C) Thermistor accuracy
  • ±0.27 degrees F (±0.15 degrees C) or ±0.54 degrees F (±0.30 RTD degrees C) RTD accuracy
  • ±2.7 degrees F (±1.5 degrees C) semiconductor accuracy
  • Lifetime limited sensor warranty
  • Wide selection of thermistor, RTD, and semiconductor curves

more information & related documents

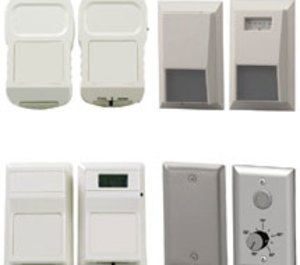

Series Description

The BA Series Room Sensors are designed specifically for HVAC applications. The room sensors come in a variety of enclosure styles, including Delta, PreCon, stainless steel plate, and BAPIstat II. Each room sensor is available with thermistor, RTD, and semiconductor sensors, which makes the BA sensors compatible with every Building Automation Systems, BAS, in use today.

Kele Description

WALL DELTA SENSOR 10K THMS 3

Manufacturer

BAPI
